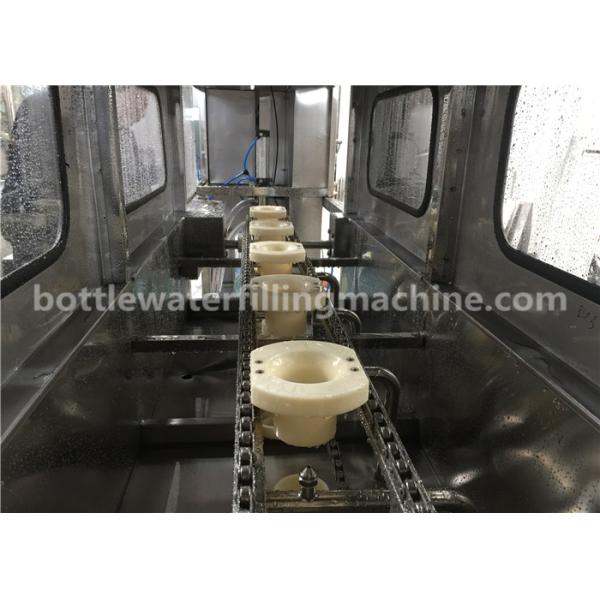

Semi-automatic 5 gallon bottle washing machine
Description
1. This semi-automatic decapper and washer is the corollary
equipment of 5 gallon barrel drinking water production line. It is
used for the decapping and washing of the recycled barrel before
filling, increasing efficiency. It is suitable for the small capacity like 150bph.
2. The machine is made of high quality stainless steel (304#,
316#), resistant to corrosion, easy to clean.
3. Main part of the machine which contact with liquid is made of
high quality stainless steel, resistant to corrosion, easy to
clean.
4. Main electrical element is from SIEMENS, OMRON; pneumatic
element is from AIRTAC.
Technical parameter:
Material: SUS304
Power: 0.37KW
Dimension: 900*800*1100mm
Weight: 100kg
150BPH 5 gallon water washing filling capping machine
Barreled drinking water production line
5 gallon blue bucket drinking water filling machine for low cost
factory
1.It has the following types:80 type,150 type,300 type,450 type,600
type,900 type.
2.It integrates bottle washer, filler and sealer into one unit. In
order to achieve the purpose of multiple injections of washing and
sterilizing by means of liquid washing and bleaching are used in
bottle washer,washing solution can be used circularly.
3.The sealer can seal barrel caps are aseptic and healthy,this line
can also automatically carry out washing,sterilizing,filling,
capping, counting and products discharging.It is a new kind of
barreled water auto-producing line,which integrates mechanism,
electricity and pneumatic technologies together.
Technical parameter
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Filling heads | 1 | 1 | 2 | 3 | 4 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | | |
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 |
| Motor power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 |
| Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
Our Services
1. One year warranty for the whole system.
2. Free equipment installation and debugging.
3. After one year, we can help you to maintain the machine and the
accessories are provided only one the cost price.
4. We can provide internship service and help you train the
operator and mechanic.
5. Free beverage production technology and process configuration.
6. We can help you to design the product line, workshop and provide
turn-key project.
