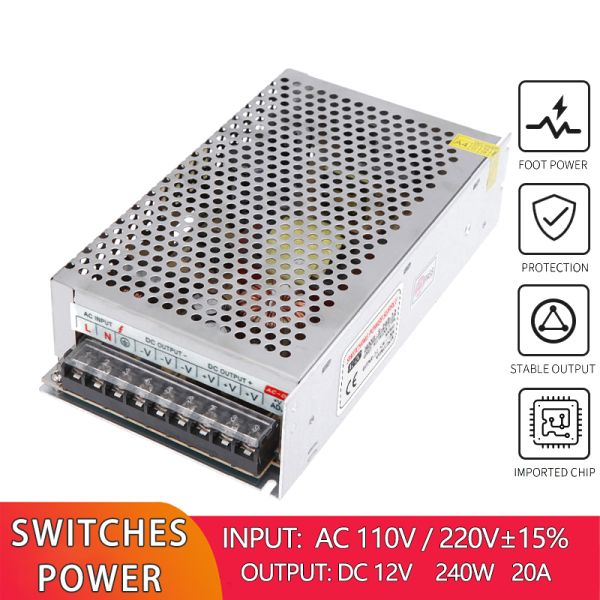

240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive

    Buy cheap 240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive from wholesalers

    Buy cheap 240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive from wholesalers
    • Buy cheap 240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive from wholesalers
    • Buy cheap 240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive from wholesalers

    240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive

    Ask Lasest Price
    Brand Name :
    Model Number : S-240-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive

    DC12V 240W 20A LED Lighting Voltage Regulator Drive Power AC 100V 240V to DC 12V Switching Power Supply


    AC to DC12V 240W 20A regulated switching power converter adapter metal shell

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.


    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-240-12

    AC input voltage range(V)

    AC 110V/220V±15%

    AC Input current(max)

    6A /115V,3A /230V

    Frequency (Hz)

    50/60Hz

    Efficiency

    90% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    12VDC

    Voltage Regulation

    +10%,-10%

    Output Current(A)

    20A

    Current Range (A)

    0-20A

    Rated Power(W)

    240W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    200*110*50

    Weight

    690g

    Easy to install and easy to use

    Product Description

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-240-12

    Output Power

    240W

    Output Type

    Single

    Input Voltage

    AC110/220V±15%

    Output Voltage

    12V

    Output Frequency

    50-60Hz

    Output Current

    20A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    90%

    Weight

    690g

    Size

    L200*W110*H50(mm)

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt

    Quality 240W 20A 12V DC Switching Power Supply For LED Lighting Voltage Regulator Drive for sale
