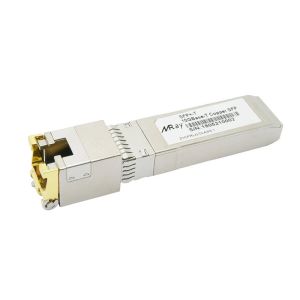

    10GBASE-T Copper SFP Module 80m Transmission distance Hot pluggable

    Ask Lasest Price
    Brand Name : Mray
    Model Number : SFP-10G-T
    Certification : CE, FCC, RoHs, ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 1~2 days for samples
    • Product Details
    • Company Profile

    10GBASE-T Copper SFP Module 80m Transmission distance Hot pluggable

    10Gbit/s SFP+ 10GBASE-T Transceiver Copper RJ45 Module 10G Copper SFP


    Description

    Miray 10G BASE-T SFP+ Copper Transceiver is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10Gb/s communication over this type of media.


    Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center expansions and expenditures to occur incrementally. The added benefit is that is uses standards based technology that uses the familiar RJ45 connector and provides backward compatibility with legacy networks.


    Features


    • Up to 10Gbps bi-directional data links
    • Supports Links up to 30m using Cat 6a/7 Cable
    • Fully metallic enclosure for low EMI
    • Compact RJ-45 Connector assembly
    • Hot-pluggable SFP footprint
    • Low power dissipation
    • Extended case temperature: 0℃ to 70℃ Applications
    • RoHS compliant and Lead Free √ 10 Gigabit Ethernet

    Applications

    • 10G BASE-T IEEE 802.3an
    • 1000BASE-T IEEE 802.3ab
    • 100BASE-TX IEEE 802.3u
    • 5G MGBASE-T
    • 2.5G MGBASE-T

    General Specifications

    Pin

    Symbol

    Name/Description

    Ref

    1

    VEET

    Transmitter Ground (Common with Receiver Ground)

    1

    2

    TFAULT

    Transmitter Fault. Not supported


    3

    TDIS

    Transmitter Disable. Laser output disabled on high or open

    2

    4

    MOD_DEF(2)

    Module Definition 2. Data line for Serial ID

    3

    5

    MOD_DEF(1)

    Module Definition 1. Clock line for Serial ID

    3

    6

    MOD_DEF(0)

    Module Definition 0. Grounded within the module

    3

    7

    Rate Select

    No connection required


    8

    LOS

    High indicates no linked. low indicates linked.

    4

    9

    VEER

    Receiver Ground (Common with Transmitter Ground)

    1

    10

    VEER

    Receiver Ground (Common with Transmitter Ground)

    1

    11

    VEER

    Receiver Ground (Common with Transmitter Ground)

    1

    12

    RD-

    Receiver Inverted DATA out. AC Coupled


    13

    RD+

    Receiver Non-inverted DATA out. AC Coupled


    14

    VEER

    Receiver Ground (Common with Transmitter Ground)

    1

    15

    VCCR

    Receiver Power Supply


    16

    VCCT

    Transmitter Power Supply


    17

    VEET

    Transmitter Ground (Common with Receiver Ground)

    1

    18

    TD+

    Transmitter Non-Inverted DATA in. AC Coupled.


    19

    TD-

    Transmitter Inverted DATA in. AC Coupled.


    20

    VEET

    Transmitter Ground (Common with Receiver Ground)

    1


    Ordering Information

    Part Number

    Chipset

    Form Factor

    Application

    Media Type

    Distance

    SFP-10G-T

    Marvell 88X3310

    SFP+

    10G

    Copper

    30m

    SFP-10G-T80

    Broadcom BCM84891

    SFP+

    10G

    Copper

    80m

    SFP-GE-T

    Marvell 88E1111

    SFP

    1G

    Copper

    100m

    SFP-GE-T10/100/1000

    Marvell 88E1112

    SFP

    1G

    Copper

    100m

    Product Dimension


    Pin Figure

    Product Details



    Packing

    Compatibility Test

    Compatible Brands


    Production Flow


    For more details, welcome to inquire us freely.
