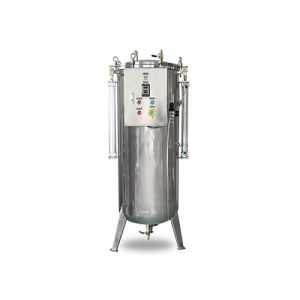

IEC 60529 IPX8 Pressure Immersion Tank For 50m Depth Testing
Main Technical Parameters
| Model | SC-IPX8-50A-350L |
| Inner dimension | Φ600*H1200mm |
| Outer dimension | 600*780*1750mm |
| Wall thickness | 4mm |
| Range of Test depth | 0-50mm |
| Range of test pressure | 0-0.55Mpa/0-5bar |
| Vent pressure of safety valve | 0.55Mpa/5.5bar |
| Pressure control mode | Automatic control by pressure sensor |
| The way of lifting the cover | Cylinder control cover |
| Test time | 0-999min |
| Power | 100W |
Feature:
1. Entire tank adopts SUS304# stainless steel high accuracy
integrated forming, ensure it will not rust and water-tight after
long time use, adjust the test pressure according to the high
precision pressure regulating valve. Pressure regulating valve with
pressure stabilizing function, it can keep stable test pressure all
the time after the pressure has been adjusted.
2.The pot cover is rotated and lifted by the screw thread, it can
rotate and move away from the hole after lifting. (when pressure is
greater than 50m depth test, must use special flange lock to lock
cover)
3.The whole tank surface blasting treatment, smooth and beautiful.
Description:
Assessment of enclosures and sealing element whether can ensure
good performance of equipment and components after the water test
or during the test.
Confirm to standards:
IEC 60529 IPX7 IPX8;
EN 60529 IPX7 IPX8;
IEC 60884-1;
IEC 60598-1;
IEC 60335-1 and so on.
More details:
Waterproof Rating:
IPX1 Protected against falling water Equivalent to 3-5mm rainfall
per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX2 Protected against falling water when tilted up to 15 degrees -
Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15
degrees in each direction from normal operating position.
IPX3 Protected against spraying water - Water spraying up to 60
degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2
for 5 min.
IPX4 Protected against splashing water - Same as IPX-3 but water is
sprayed at all angles.
IPX5 Protected against water jets - Water projected at all angles
through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a
pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX6 Protected against heavy seas - Water projected at all angles
through a 12.5mm nozzle at a flow rate of 100 liters/min at a
pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX7 Protected against water immersion - Immersion for 30 minutes
at a depth of 1 meter.
IPX8 Protected against water submersion - The equipment is suitable
for continual submersion in water under conditions which are
identified by the manufacturer.
We are professional IP waterproof Testing Equipment manufacturer.
Guangzhou Shice are designed and manufactured as per the
requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.
Our main products are: waterproof and dustproof (IP) environmental
test equipment; switch, plug, socket and coupler test equipment;
mechanical strength impact test equipment; material fire hazard
test equipment, enclosure protection test probes; household
appliances safety test equipment; wire and cable test equipment;
luminaires test equipment; electric tools test equipment. Our
products are widely used in domestic and worldwide measurement &
certification institutions, inspecting mechanism, laboratories,
export & import inspection and quarantine bureau, various
production companies and etc. Our customer includes Bureau Veritas,
CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
