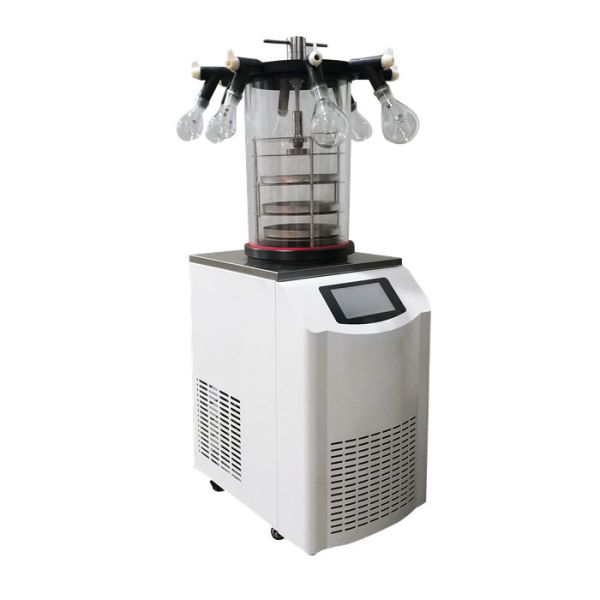

-65 ℃ SS304 Diy Freeze Dryer Mini Freeze Dryer Shelf Model For
Chemistry
Advantages of YT- N Freeze Dryer
1. Refrigeration uses Linde-hampson, the world's leading
technology, with a refrigeratory (secondary cooling by
refrigeration), high refrigeration efficiency;
2. The use of environmentally friendly refrigerants (absolutely
does not contain the refrigerants banned by the state, some
manufacturers still use the mixed refrigerant scheme with the ratio
of R12 and R22 banned by the state);
3. Refrigeration temperature:
3.1 Temperature of cold trap up to standard (no load): <60
(DegC) and room temperature <28 (DegC)
3.2 Limit cold trap temperature (no load): <65 C, room
temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy
to operate, without defining the inexplicable button selection.
5. Support freeze-drying data curve recording function.
YT-10N,YT-12N,YT-18N this series has five types: ordinary,
top-press, multi-pipeline ordinary,multi-pipeline top-press and
T-type shelf
Model | YT-12N |
Parameters Model | | YT-12N-60A Basic type | YT-12N-60B Top-down | YT-12N-60C Manifold | YT-12N-60D Top down&manifold
| |
| Drying area | ㎡ | 0.12 | 0.092 | 0.12 | 0.092 | |
| Tray | mm | 200*4 | 200*3 | 200*4 | 200*3 | |
Tray capacity Condensor No-load temperature | L | 1.5 | 1 | 1.5 | 1 | |
| ℃ | <-60 (-80 optional )
|
| Vacuum | Pa | <10pa
|
| Interlayer spacing | mm | 70 | | | | |
| Vals number for reference | 22 | 260 | 165 | 260 | 165 | |
| 16 | 480 | 285 | 480 | 285 | |
| 12 | 920 | 560 | 920 | 560 | |
| Ability to capture water | Kg | 4kg/24H |
| voltage | V/Hz | 220V/110V |
| Power | W | 850W |
| Machine size | mm | 580*395*650 |
main feature:
1. Adopt Danfoss compressor for refrigeration, rapid refrigeration
and low temperature of cold trap.
2. Using 7 pairs of true color touch LCD screen control system, the
operation is simple and convenient, and powerful.
3. Industrial embedded operating system, ARM9 core control circuit
design, 32M memory 128M FLASH, fast operation response speed and
large amount of stored data.
4. The control system automatically saves the freeze-drying data,
and can be viewed in the form of real-time curve and historical
curve, the whole freeze-drying process is clear and clear.
5. The drying chamber adopts colorless and transparent
injection-molded polycarbon drying chamber, which is
corrosion-resistant and has no bonding. The samples are clear and
intuitive, and the whole process of freeze-drying can be observed.
6. The connection between the empty pump and the host adopts the
international standard KF quick connector, which is simple and
reliable.
7. This machine can store multiple freeze-drying curves, and use U
disk to extract data to the computer.
8. This control system has 36 options for freezing F curve schemes,
and each scheme contains 40 temperature control settings, which can
realize the record of freeze-drying process parameters for a
variety of materials
9. The temperature of the partition is adjustable, controllable,
groping, pilot and production technology.
10. The connection between the vacuum pump and the host adopts the
international standard KF quick connector, which is simple and
reliable.
Q: Do all products have English operating interfaces and operating
manuals?A:Yes, all our equipment has English operation interfaces, and if
necessary, we are also able to provide the edition in the user's
native language, and all products are available in English
operating instructions; if necessary, we can also provide the
user's desired language version.
In addition, there are are operating videos for our products for
the convenience of customers to use.
Q: How is the after-sales service of your company?
A:We offer quality guarantee for all the products, and for products
within the warranty period, we provide free services for all
damages not resulting from human beings. After the warranty
expires, we will charge cost price only
Q: What is your MOQ of the spray dryer?
A:1 set.
Q: How long is your delivery time of spray dryer?
A: Generally it is depending on order quantity.The specific time can be negotiated.
Q: How to choose suitable spray dryer?
A:tell us your work flow and requirements ,then we will recommend
you suitable equipment according to yourrequirements, application
experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A:Please email us about problem with pictures or a small video will
be better,we will find the problem and solve it. If broken, we will
send you a new free part if in the warranty period.
