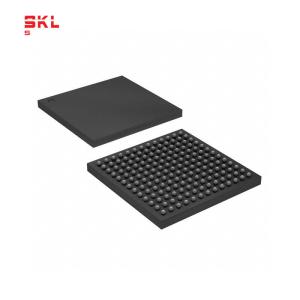

10M04SAU169C8G Programmable IC Chip Field Gate Array (FPGA) Standard Power Devices

10M04SAU169C8G Description

• 14 nm Intel tri-gate (FinFET) process technology

• SmartVID controlled core voltage, standard power devices

• Up to 144 total transceivers available
• Continuous operating range of 1 Gbps to 28.9 Gbps in NRZ mode and 2 Gbps to 57.8
Gbps in PAM4 mode
• Backplane support up to 57.8 Gbps PAM4 / 28.9 Gbps NRZ
• Extended range down to 125 Mbps with oversampling
• ATX transmit PLLs with user-configurable fractional synthesis capability
• XFP, SFP+, QSFP/QSFP28, CFP/CFP2/CFP4, QSFPDD optical module support
• Adaptive linear and decision feedback equalization
• Transmit pre-emphasis and de-emphasis
• Dynamic partial reconfiguration of individual transceiver channels
• On-chip instrumentation (Eye Viewer non-intrusive data eye monitoring)

• Up to 440 total GPIO available
• 1.6 Gbps LVDS—every pair can be configured as an input or output
• 1333 MHz/2666 Mbps DDR4 external memory interface
• 1067 MHz/2133 Mbps DDR3 external memory interface
• 1.2 V to 3.0 V single-ended LVCMOS/LVTTL interfacing
• On-chip termination (OCT)
