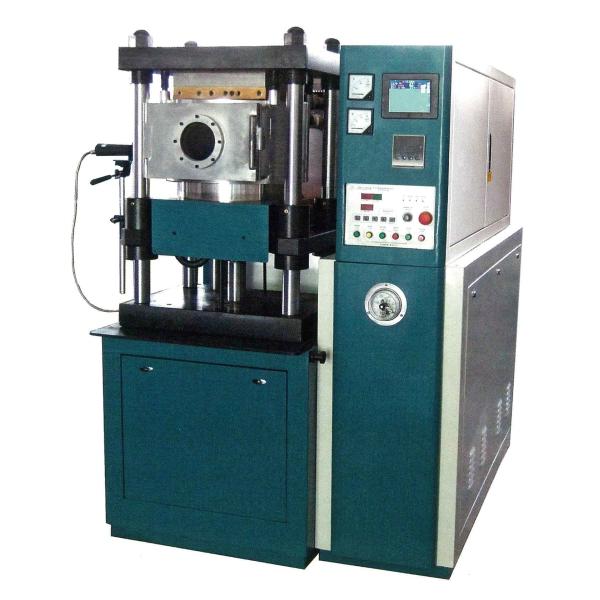

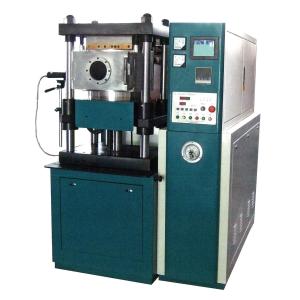

RYJ 2000Z Vacuum Sintering Presser

This machine is controlled by singlechip and it can preset 100 curves any of which includes 10 sets parameters of temperature, pressure and time.So it can reliably accomplish movement program, movement display,malfunction detection and protection.The precise temperature and pressure control system, which is composed by singlechip, intellectualized temperature controller with computer, infrared temperature detector and high-power controllable silicon, makes production temperature execute according to preset curves. Pressure controlled by electrolled by electric-hydraulic proportion valve can be set with different degree and automatically switch according to temperature. This machine can be vacuum of fill with protective gas.

Main Technical Data:

Pressure: 250KN

Rated oil pressure: 20MPa

Rated vacuum degree: 70mmHg

Piston diameter x stroke: D125X260(mm)

Rammer size:D220mm

Minimum mould height: 120mm (after press)

Maximun mould height: 180mm

Heating power: 60KW

Temperature measure component: infrared temperature measurement

Motor power: 0.75KW

Parallelism of rammer: <0.1mm

Overrall dimension: 1380 x 1170 x 1700(mm)

Net weight: 1500kg
