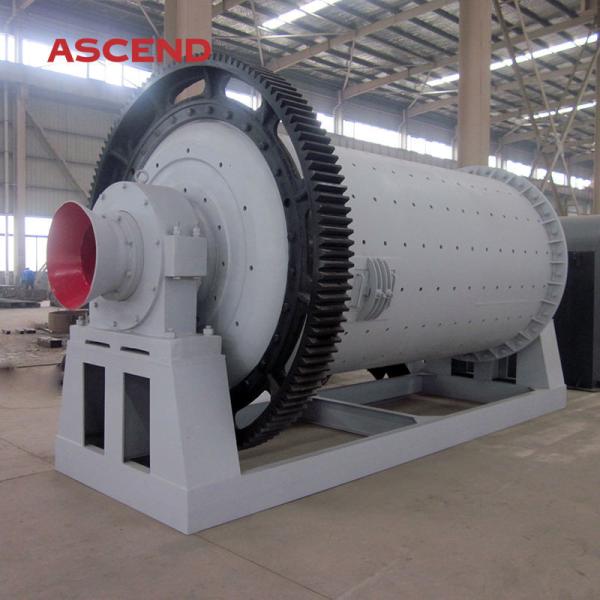

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery
Product Description
Ball mill is the key milling equipment after material has benn crushed. It is used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and grind able material.
Features of Ball Mill
The ball mill id formed by feeding part, discharge part, rotation part and driving part (gesr box, small transmission gearwheel, motor and electric control). The central hollow shaft is cast steel, the inner liner can be changed, the rotation big gearwheel is made by cast hobbling processing, and wearable liners with favorable anti-wear ablity. Reliable and stable are main advantage of this equipment.
Detailed Images
Spare Parts
Working Principle
The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, whic will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through thr discharge screen.
Main Technical Parameters
| Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Total weight (t) |
| 900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| 900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| 1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| 1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| 1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| 1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| 1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| 1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| 1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| 1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| 1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| 1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| 2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| 2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| 2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| 2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| 2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| 2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| 2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| 2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| 2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
Packing&Shipping
Working Sites
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
