    Tube panel light mounting machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : F7S
    Certification : CCC/CE
    • Product Details
    • Company Profile

    Tube panel light mounting machine

    High capacity mounting machine LED tube panel light


    Product description

    This mounting machine is equipped with 34 suction nozzles and 68 feeders station. The feeding mode is double motor electronic feeder. Motor controlled winding, feeder carry out feeding, independent control, more accurate, reducing failure rate.


    2.The maximum size of PCB board is 1200 * 330mm and the minimum is 100 * 100mm. The thickness of PCB board is 0.5-5mm. Can be used to make rigid boards, such as panel lamps and lamp tubes, In addition to hard boards, one of the biggest features of this machine is that it can also make soft boards, such as flexible light strips, which are used for outdoor decoration.

    3,Each screw rod is controlled by a servo motor, which converts the rotary motion of the servo motor into linear motion, thereby driving the mounting machine placement head to repeatedly move on the linear guide rail to mount components. Multiple screw rods work together, and servo motor and angle motor ensure accuracy.

    4,Under the optimal operating environment, the mounting machine achievable capacity of F7S is 180000 CPH, and the components that can be installed are led3014 / 3020 / 3528 / 5050 resistors, capacitors, bridges rectifiers, etc.


    Parameter

    Product namemounting machine
    ModelHT-F7S
    PCB clampingAdjustable pressure pneumatic
    Camera featureVision alignment,MARK correction
    NO.of camera5 sets
    displayLED touch screen monitor
    softwareR&D independently
    Input devicekeyboard & mouse
    MAX PCB size1200*330mm
    MIN PCB size100*100mm
    Mounting modeGroup to pick and group to place
    Mounting speed150000-180000 CPH
    No.of heads34 PCS
    No.of feeders station68 PCS
    Feeding wayElectric feeder with two motor


    Material & Package

    We adopt strict processes in material purchasing and products producing, The normal package is vacuum wooden box. If container is too tight ,we will use PE film for packing or pack it according to customers special request .

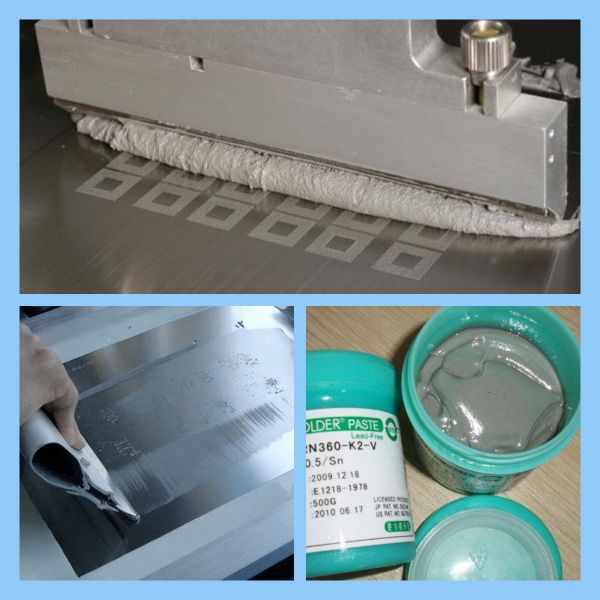

    Solder paste

    Gray paste, mainly composed of flux and solder powder. Solder paste is a new type of welding material that emerged with SMT. It is a paste like mixture formed by mixing solder powder, flux, other surfactants, thixotropic agents, etc. It is mainly used for welding electronic components such as PCB surface resistors, capacitors, and IC in the SMT industry.

    According to environmental requirements, solder paste is divided into lead-based solder paste and lead-free solder paste; According to the melting point, it can be divided into three types: high temperature, medium temperature, and low temperature; According to the fineness of tin powder, it is divided into 3 # powder, 4 # powder, and 5 # powder solder paste.
