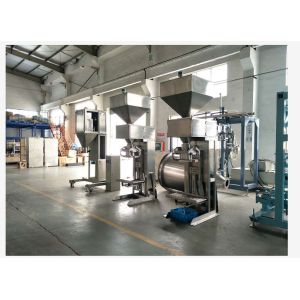

Semi Automatic Powder 25 Kg Bag Weighing Feeding Packing Machine 60-120 Bag Per Hour

Semi Automatic Powder 25 Kg Bag Weighing Feeding Packing Machine 60-120 Bag Per Hour

A. What is the 25 kg packing machine ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,

B. Discription of 25 Kg packing machine ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.

C. Application of 25Kg packing machine:

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.

1. Scope of application:

1) Applicable material:

Super fine powder, The powder with much air , or the powder with a very low bulk density .

2) Applicable filling containers:

Bags, Cartons, Cartones, Drums.

2. Technical parameters :

3. Functions and Characteristics :

1) Gross wight type;

2) Gravity feeder;

3) High weighing accuracy is guaranteed by the load cell and digital weighing controller

4) Easy to operate , automatic taring , automatic filling, automatic weighing, automatic suctioning during packaging;

5) The negative pressure suction system automatically suction the air in the powder during filling to densify the powder, which can reduce the volume of the packaging container, thereby saving the cost of packaging, storage and transportation; and preventing collapse and breakage of the bags because of much air in the bag during palletizing;

6) No dust leakage and polluting the environment When the packer filling, the powder passage is completely sealed.

Main specialty

• Scope of application: Granular material or powder material of Packing bags(boxes and pails)
• Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
• Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.

Main sub-suppliers:

Utilities ( provided by buyer )

1. Power:

AC380V±10％；50Hz±2%(three phase and five wires)；

2. Compressed Air:

Pressure: 0.55~0.7 Mpa；

Consumption: 0.3N m3/min；

3. Temperature: -10- +40(℃)

4. Relative humidity: ≤90% (no coagulation water)

5. De-dusting

Negative pressure:6-8 pa

Blowing rate: 1800m³/H

Advantage : Fast packing speed , high precision, less dust

Our hot sale products :

1. 25 kg automatic ( open mouth bag ) packing & palletizing line,

2. 25 kg automatic ( valve type bag ) packing & palletizing line,

3. ton bag packing machine.

4. liquid filling machine (10L-50L;/ 50L-250L; / 1500L)

95% of china white carbon black factory use our packing machine

Changshu Sanhe Precision Machinery & Technology Co., Ltd (originally Changshu Sanhe Measuring Equipment Factory) builded in 1998, was established in 1998 with registered capital of 13.8 million RMB.

The total people of the company is 104, of which 28 are engineers and technicians. Our company is a scientific and technological enterprise specializing in the research and development manufacture and sale of granular and powder packaging machine, liquid filling machine, batching system and automatic packaging (filling) palletizer production line.

Our products are well-selling both at home and abroad, and are widely used in chemical industry, petrochemical industry, fine chemical industry, fertilizer, plastics, rubber, dyes, pigments, food, feed, non-ferrous metals. Metal ore, non-metallic ore, building materials and other industries. Our company is good at dealing with hard-to-pack powder and implementing dustless packaging. Our technical level is in the leading level in the industry. Some of the technology (automatic powder packaging machine with automatic air-removing function) has reached the international advanced level.

Changshu Sanhe Precision Machinery & Technology Co., Ltd is a national high-tech enterprise, Jiangsu high-tech enterprise and Jiangsu private high-tech enterprise. It has a postgraduate workstation in Jiangsu Province, a research and development center of Suzhou automatic packaging and palletizing production line. It has also obtained a national innovation fund, two national key new products and three products are high-tech products in Jiangsu Province. It has obtained ISO Quality Management System Certificate and CMC, and has a perfect after-sales service system. It has obtained 20 national patents, including 12 invention patents. The company also has the right of independent import and export trade.

Annual sales volume is RMB 71,000,000 in 2022.
