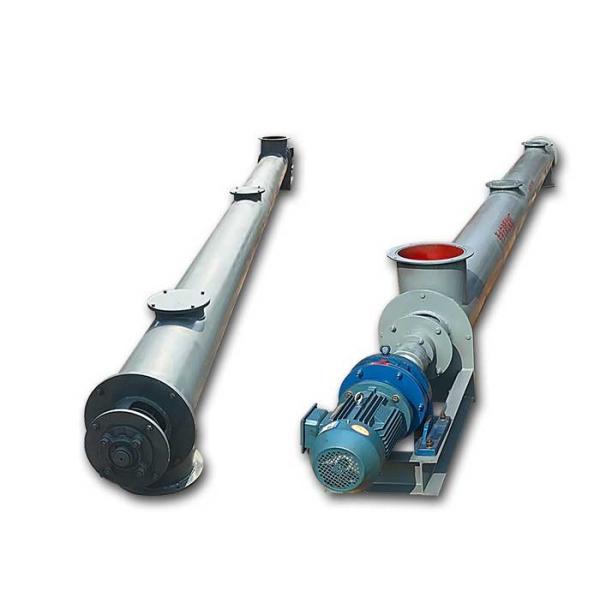

Power Seamless Pipe Carbon Steel 11KW Vertical Screw Conveyor
Working principle Of Vertical Screw Conveyor
The spiral blade welded on the rotating shaft of the vertical screw
conveyor, the surface type of the blade has solid surface type,
belt type surface type, blade surface type and other types
according to the different materials conveyed by the vertical screw
conveyor. The screw shaft of the vertical screw conveyor has a
thrust bearing at the end of the material moving direction to give
the screw axial reaction force with the material. When the length
of the machine is long, an intermediate hanging bearing should be
added.
Product Features Of Vertical Screw Conveyor
1. Large carrying capacity, safe and reliable.
2. Strong adaptability, convenient installation and maintenance,
and long service life.
3. The whole machine is small in size and high in rotation speed to
ensure fast and even delivery.
4. The discharge end is equipped with a cleaning device, the whole
machine has low noise and strong adaptability, and the position of
the inlet and outlet is flexible.
5. Good sealing, the shell is made of seamless steel pipe, and the
ends are connected with each other by flanges, which has good
rigidity.
Technical data of Vertical Screw Conveyor
| Diameter(mm) | Speed(r/min) | Capacity(m3/h) | Height(m) |
| KLS200 | 200 | 350 | 2.5-15 |
| KLS250 | 250 | 300 | 2.5-15 |
| KLS300 | 315 | 280 | 2.5-15 |
Selection Conditions of Vertical Screw Conveyor
♦Material to be processed: _____ |
♦Handling capacity -------------- |
material capacity feeding from the inlet): _____t/h |
♦Bulk Density: _____t/m3 |
♦Conveying distance -------------------------- |
♦Material size:____mm |
♦Material temperature: _______ ℃ |
♦Water content:____% |
♦Material is corrosive or not: ____ (Ps. Yes or No) |
How to Select Correct Model Vertical Screw Conveyor:
1. What's the accepted payment term?
T/T L/C Western union,cash and so on.
2. How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard
equipments could be longer depends on certain case
3. Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an
ideal solution
4. Are you engineers available for overseas installation and
training matters?
Yes,and all the relative costs should be covered by you
How to packing and delivery machine !!!
Usually packed with seaworthy wooden box packing and we can
accepted customer sepical required .
