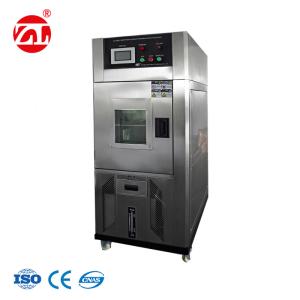

    Programmable Constant Temperature And Humidity Testing Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-6004A
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets / month
    Delivery Time : 4-7 work days
    • Product Details
    • Company Profile

    Programmable Constant Temperature And Humidity Testing Machine

    Programmable Constant Temperature And Humidity Testing Machine
    Product Overview

    This programmable testing machine evaluates material performance under various environmental conditions including heat resistance, cold resistance, dry resistance, and moisture resistance. Featuring user-friendly operation and easy programming capabilities, it displays set values and operational time for comprehensive testing management.

    Construction: Stainless steel construction with powder-coated exterior finish.

    Key Features
    • High-texture appearance with matte stripe surface treatment and planar non-reactive handles for safe, reliable operation
    • Rectangular complex glass viewing window with anti-sweat heater to prevent condensation and high-brightness PL lighting
    • Double-insulated airtight container effectively isolates internal temperature leakage
    • External water supply system for easy water replenishment and automatic reuse
    • French "Taikang" compressor circulatory system with efficient oil removal and environmentally friendly refrigerants (R23, R404, R507)
    • Imported LCD display controller showing measurement values, settings, and time
    • Multi-segment programmable control with quick (QUICK) or slope (SLOP) temperature and humidity control modes
    • Built-in mobile pulley system with strong positioning screws for easy mobility and secure placement
    Compliance Standards
    • International Electrotechnical Commission: IEC68-2-03 (Ca), IEC68-2-01 (A), IEC68-2-02 (B)
    • industrial Standards: MIL-STD-810F (507.4, 501.4, 502.4), MIL-STD883C (1004.2), MIL-STD810D (502.2), MIL-STD810 (507.2)
    • Japanese Industrial Standard: JIS C60068-2-3-1987 (Ca), JIS C60068-2-2-1995 (B), JIS C60068-2-1-1995 (A)
    • USA Semiconductor Industry: JESD22-A101-B-2004, JESD22-A103-C-2004, JESD22-A119-2004
    • Chinese National Standard: GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423 series
    • China's National industrial: GJB150.3, GJB150.4, GJB150.9
    Industry Applications

    Applied for quality control across multiple industries including electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, and medical care.

    Technical Specifications
    ModelZL-80 (A~G)ZL-150 (A~G)ZL-225 (A~G)ZL-408 (A~G)ZL-608 (A~G)ZL-800 (A~G)ZL-1000 (A~G)
    Inside Size Wu00d7Hu00d7D (cm)40u00d750u00d74050u00d760u00d75050u00d775u00d76060u00d785u00d78080u00d795u00d780100u00d7100u00d780100u00d7100u00d7100
    Outside Size Wu00d7Hu00d7D (cm)100u00d7170u00d787105u00d7175u00d797115u00d7190u00d797135u00d7195u00d7115145u00d7185u00d7137145u00d7210u00d7130147u00d7210u00d7140
    Temperature Range-70u2103~+100u2103(150u2103)
    (A:+25u2103 B:0u2103 C:-20u2103 D:-40u2103 E:-50u2103 F:-60u2103 G:-70u2103)
    Humidity Range20%~98% R.H. (10%-98% R.H./5%~98% R.H. under specific conditions)
    Accuracy / Uniformityu00b10.1u2103; u00b10.1% R.H. / u00b11.0u2103; u00b13.0% R.H.
    Accuracy / Volatilityu00b11.0u2103; u00b12.0% R.H. / u00b10.5u2103; u00b12.0% R.H.
    Heating / Cooling TimeApprox. 4.0u2103/min; approx. 1.0u2103/min (5~10u2103/min under specific conditions)
    Interior MaterialStainless Steel SUS 304#
    Insulation MaterialHigh-temperature high-density amino acid ethyl ester foam insulation materials
    Cooling SystemAir-cooled/single-stage compressor (-20u2103), wind/water cooled/two-stage compressor (-40u2103~-70u2103)
    Protection SystemsCompressor overload switch, high/low pressure protection, over-humidity/temperature protection, fuses, warning system
    AccessoriesRecorder (optional), view window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball
    ControllerTEMI300 digital controller (South Korea)
    CompressorFrance Tecumceh
    Power Supply1u03a6 220VACu00b110% 50/60Hz & 3u03a6 380VACu00b110% 50/60Hz
    Temperature Humidity Control Chart
    System Components
    A. Wind Circulative System
    • Multi-wing centrifugal rewind fans with aluminum alloy axis for forced convection
    • Stainless steel extended axis
    • Stainless steel multi-blade centrifugal wind wheel
    B. Water Supply System
    • Rear-mounted water tank
    • Automatic water supply
    • Low water level warning system
    C. Cooling System
    • Compressor: France "Tecumceh" Hermetic Refrigeration Compressor TFHK2522K (two units)
    • Refrigerator: Air-cool condenser coil
    • Evaporator: Pomfret chip multi-segment design
    • Accessories: Imported desiccant cooling, Freon-borne window, US oil-water separator
    • Expansion System: Italian expansion valve
    D. Temperature and Humidity Control System
    • Controller: South Korea TEMI850 color LCD touch screen (English/Chinese)
    • Accuracy: u00b10.5u2103 u00b11% R.H.
    • Resolution: 0.1u2103 1% R.H.
    • 999 program memory capacity with single-stage or multi-segment program control
    • RS-232 communication interface for computer monitoring and data recording
    • Comprehensive safety inspection with fault status display and power cutoff
    • Cumulative operating time display
    • Sensor: PT100 Sensor
    E. Standard Accessories
    • Two adjustable stainless steel shelf boards with customizable spacing
    • Perspective vacuum glass windows (explosion-proof type)
    • Wide-angle energy-efficient fluorescent lighting
    • Four adjustable fixed wheel axles with control indicator lights
    • One pair of u03a650mm testing holes

    Power Requirements: Three-phase 380V u00b110%, 50Hz u00b12%, 4KW

    Service and Support
    • Comprehensive documentation including equipment drawings, electrical schematics, wiring diagrams, spare parts lists, and operating manuals
    • Operator and maintenance training for equipment proficiency
    • One-year warranty with free maintenance service, followed by cost-price spare parts availability
    ZL-6004B Component Specifications
    StructureMaterialModelOriginDescription
    Box ShellStainless Steel SUS304BImportImportAntirust
    LinerStain Steel SUS304BImportImportAntirust
    InsulationRigid polyurethane foam, ultra-fine glass fiberHongkongHongkongInsulation
    DoorStainless Steel SUS304BImportImportGood sealing performance
    View Window38026 insulating glassObserved the testing sample
    FrameStainless steel ringExportExportDiameter 8mm
    Testing HoleDiameter 60MMWire through directly
    Heating SystemStainless steel heat sinkHongkongHongkongStorage's temperature rise up
    Air Circulation SystemYYF100-25-4SJapanJapanStorage back to ring
    Cooling System CompressorCAJ2464FranceFranceCooling
    CondenserTecumcehFranceFranceStorage back to ring
    CoolantR23/404/environmentallyUnited StatesUnited StatesCooling
    Electromagnetic Valve1028/3 CastorItalyItalyRefrigerant opening and closing
    Expansion ValveTY2 DanfossUnited StatesUnited StatesRefrigerator throttling
    Filters0835 DanfossUnited StatesUnited StatesFilter oxide cooling pipe
    Humidity SystemStainless steel304 Import304 ImportThe effective protection of laboratory humidity
    Humidity BoxMade by oneselfProvide temperature
    Programmable Constant Temperature and Humidity Testing Machine Diagram
