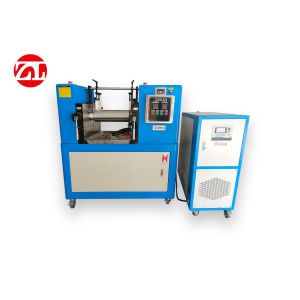

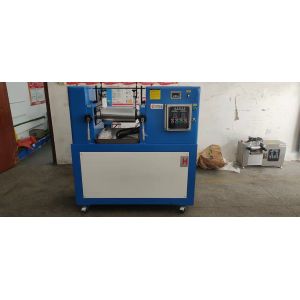

Rubber And Plastic Two Roll Mill With Oil Heating
Introduction:
Two roll mill machine are engineered to provide unmatched
performance for masticating and kneading natural rubber,synthetic
rubber , EVA or PVC pellets with various chemical materials,This
machine is mainly used to plastic ,hot mill and mixing mill of
natural and synthetic rubber for rubber product factory
Application:
Plastic open two roll mixing mill. It is widely used in rubbers and
plastics industry for polymer mixing, such as PVC, color master
batch. It consists of roll, bearing, gap adjusting device, electric
control system, safety device, etc.
Technology Parameters:
| Model | Rubber Test Machine Open Mixing Mill |
| Mixed capacity | 0.5-1kgs / 2-3kgs / 5-7 kgs |
| Temperature | room temperature ~ 300 ℃ |
| Temperature control | LED display, buttons to set the input
and display output value |
| Temperature control | P.I.D controlled |
| Heater | cylindrical mold is heated |
| Warm-up time | room temperature ~ 150 ℃ about 20min |
| Temperature accuracy | ± 3 ℃ |
| Roller dimensions | diameter 3.9 "× L13.7" |
| Drum revolutions ratio | Standard revolutions ratio 1:1.25 |
| Roller hardness | HRC 50 ~ 60 |
| Power | about 2800W |
Protection device is attached
state of emergency | Security |
| Volume | 960*550*1150 (W* D* H) mm |
| Power source | AC380V, 15A |
| Weight | about 380kg |
Feature:

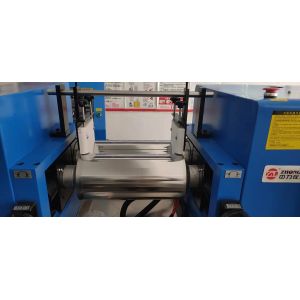

1. The roller is made of chilled cast iron. It is divided into
hollowed roll and drilled roll. The inner of hollowed roll is
machined. The hollowed roll surface can be smooth or grooved. The
grooved roll has full grooved surface, partial grooved surface and
so on.
2. The roll is supported by roller bearing so it has low noise and
long service life.
3. The roll bearing adopts grease lubricating and oil lubricating.
4. The pressure transducer system is available for directly
displaying the working pressure and control the feed. When over
pressure, it will automatically stops and save or print the
pressure value.
5. The product is complied with nation-established safety standard
(this standard is identical with Europe standard.)
6 The base frame is a whole framework, which is convenient for
installation.
7 Stock bender for direct rubber sheet and knife to cut as your
need to assemble.
8. Auto-lubricaton sysytem for greese or oil and match bearing bush
Intelligent control panel and PLC control system:
1. Real-time data record and export of kneading time, temperature
(mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20
recipe spaces.
3. The control system is capable of remote import of the process
recipe and data monitoring, communicating with MES via Ethernet
communication interface..
4. An Ethernet communication interface and 20% of the control
points are reserved. Touch screen is provided.
We are Zhongli Instrument Technology Co., Ltd, an instrument
Expert, Headquartered in Dongguan, Guangdong, China.since 2007,
specialized in manufacturing Lab testing equipments.
Our equipments cover a wide range of industries, such as rubber and
plastics industry, food industry, packaging industry, electronics
industry, etc.and are suitable for all scientific research units,
quality inspection institutions and academic fields.
Promises: Two year free maintenance of all equipment, maintenance
of life, welcome to consult the discussion!
