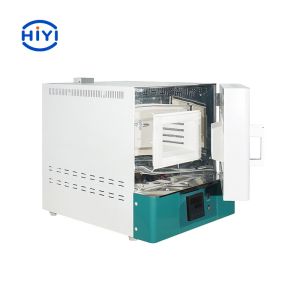

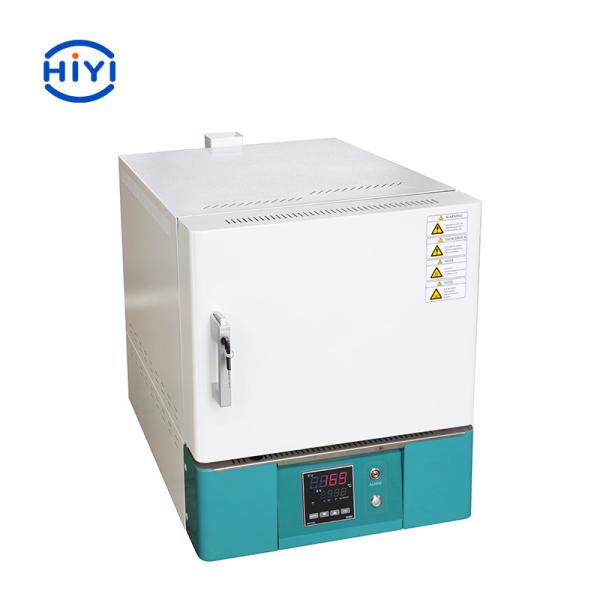

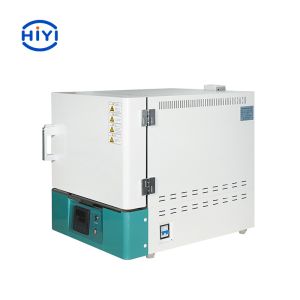

    Sx Series 1200℃ Ceramic Fiber Muffle Furnace Lcd Program

    Ask Lasest Price
    Brand Name : HiYi
    Model Number : SX Series
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Sx Series 1200℃ Ceramic Fiber Muffle Furnace Lcd Program


    Ceramic Fiber Muffle Furnace


    OVERVIEW


    Ceramic fiber muffle furnace body is made of American ceramic fiber material, which has the characteristics of good thermal insulation performance and light weight.


    FEATURES & BENEFITS

    1. Mirror stainless steel mouth, long-term use will not change color.

    2. Imported double insulated ceramic liner, stable performance

    3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.

    4. In the double shell, the air sleeve is insulated, and the double guiding air passage.

    5.High-precision micro-computer controller and precision sensor are perfectly integrated, and the temperature is accurate.


    SX4 model also has the following characteristics:

    1.Import time control system and high precise sensor with sensitive, response, high precision and good stability.

    2.Adding exhaust devices is beneficial to ashing.

    3. Split design, circuit detachable, easy to maintenance and repair.

    4. P model is program temperature control type. Program temperature controller can programme multistage program.


    Application

    Sintering, melting, elemental analysis and physical measurement within 1200℃ of precise control


    SPECIFICATIONS

    ModelSX3-2.5-12SX3-5-12SX3-8-12SX3-10-12SX3-36-12
    SX3-2.5-12BSX3-5-12BSX3-8-12BSX3-10-12B
    SX4-2-12SX4-7-12SX4-12-12SX4-16-12SX4-36-12
    SX4-2-12BSX4-7-12BSX4-12-12BSX4-16-12B
    SX4-2-12PSX4-7-12PSX4-12-12PSX4-16-12PSX4-36-12P
    SX4-2-12PBSX4-7-12PBSX4-12-12PBSX4-16-12PB
    Heating modeAlloy wire heating in three sides left; right; top side.

    Function
    Temp. Range100-1200℃
    Temp. Resolution Ratio1℃
    Temp. motion±1℃
    Temp.Rising time to max temp≤30min

    Structure
    Chamber materialCeramic fiber
    Outer shellcold rolling steel electrostatic spraying exterior; B model: stainless steel
    Insulation layerCeramic fiber
    HeaterAlloy heating wire
    Power rating1.5kW3.0kW4.5kW6.0kW9.0kW
    Exhaust holeφ30mm(chimney size 80*60mm)

    Controller
    Temp. control mode

    SX3 Type : domestic Xianmen Yudian single-stage temperature controller

    SX4 Type: Japaness SHIMAX single-stage temp. controller

    SX4-P: Japaness Fuji color LCD 64- segment programmed temperature controller


    Temp. setting modeTouch button setting
    Temp. display modeMeasuring temperature: LED upper row, setting temperature: the lower row
    TimerSX3: 0-3200min, SX4: Without Timing Function,SX4-P:Timing Function, 99 hours and 59 minutes (With Timing Waiting Function)
    Operation functionFixed temperature operation, timing function, auto stop.
    Additional functionSensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory
    SensorSX3:Platinum-rhodium sensor;SX4:High precision K type sensor
    Safety deviceManual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection,thermocouple failure

    Specification

    Inner Chamber size

    (W*L*H)(mm)

    120*200*80200*300*120200*300*200250*400*160300*400*300
    Exterior size (W*L*H)(mm)

    450*685*600


    530*785*640530*785*720600*895*700630*885*820
    Packing size (W*L*H)(mm)580*775*730660*875*770660*875*850730*985*830760*975*950
    Volume2L7L12L16L36L
    Current rating (50/60HZ)AC220V/6.6AAC220V/13.6AAC220V/20.4AAC380V/9.9AAC380V/13.6A
    NW/GW (kg)33/3745/5062/6877/9687/106
    optional typeLCD program temperature control device with USD date storage
