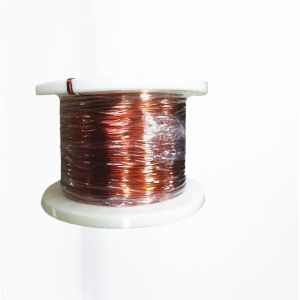

    Class 220 Rectangular Enameled Copper Wire Voice Coil Wire

    Ask Lasest Price
    Brand Name : Rvyuan
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation, T/T, L/C
    Delivery Time : 2-15 workding days
    Supply Ability : Satisfy your demand
    Model Number : Class 220
    • Product Details
    • Company Profile

    Class 220 Rectangular Enameled Copper Wire Voice Coil Wire

    CLASS 220 RECOTANGULAR ENAMELED COPPER WIRE VOICE COIL WIRE
    Rectangular winding wire is a kind of winding wire,first the ectrical round aluminum rod or copper rod is extruded or drawed into high quality conductor and copper conductor,then it is insulated by the varnish.They are mainly used in motors, transformers, generators and other electrical equipments.
    FEATURES

    • Excellent resistance to abrasion and solvent,

    • Excellent electricity performance

    • Excellent heat shock, adherence and flexibility,

    • High cut through

    APPLICATION

    • ELECTRICAL MOTORS LIGHTING FIXTURES

    • TRANSFORMERS COILS

    • SWITCHGEAR SOLONOID VALVES

    • AUTOMOBILES ELECTRICAL APPLIANCES

    • INDUSTRIAL ELECTRONICS PUMPS&FANS

    SPECIFICTION

    1.Uses:
    This product is applicable to all types of large and medium-sized electrical machinery, transformer paint, electrical windings and other uses, which is characterized by higher mechanical property, thermal shock resistance, freezing agent resistance and solvent resistance.
    2.Model
    ModelName
    QZB-/130Grade 130 Polyester Enameled Flat Copper Wire
    QZ(G)B-/155Grade 155 Modified Polyester Enameled Flat Copper Wire
    QZYB-/180Grade 180 Polyester Enameled Flat Copper Wire
    Q(ZY/XY)B-/200Grade 200 Polyamide-imide Enameled Flat CopperWire
    3.Production Range:
    Side A 0.80mm-5.60mm, Side B 2.00mm-16.00mm
    4.Implementation Standards:
    GB/T 7095.6
    5.Main Technical Requirements:
    Project NameTechnical RequirementsTest Method
    AppearanceSmooth and uniform surface, which should not bear any defect affecting performanceNormal Visual Inspection
    Conductor Sizes and RadiusesComplying with the Article 7 of GB7095.1 standardGB/T 4074.2
    Paint Film ThicknessPaint FilmPaint Film Thickness mmGB/T 4074.2
    Grade 10.06-0.11
    Grade 20.12-0.17
    DC ResistanceThe per unit length of DC resistance R20 of conductors at 20 °C should comply with Article 9 of GB 7095.1 R20 standard.GB/T 3048.2
    ElongationNominal SizeRupture elongation (%) of conductorGB/T 4074.3
    a≤2.5030
    a>2.5032
    BendingNominal SizeDiameter of Test BarAfter the wide and narrow sides are bent on the given round bar, the film should have no cracks.GB/T 4074.3
    B<104b
    b105b
    a All Sizes4a
    Breakdown VoltageInsulationBreakdown Voltage VGB/T 4074.5
    Room TemperatureHigh Temperature
    Grade 11000750
    Grade 220001500
    AdhesionAfter enameled flat aluminum wires are stretched by 15%, the distance of adhesion loss of the coating should be less than 1b GB / T 4074.3 standard.GB/T 4074.3
    ElasticityThe springback angle of enameled flat aluminum wire should not exceed 5.5°.GB/T 4074.3
