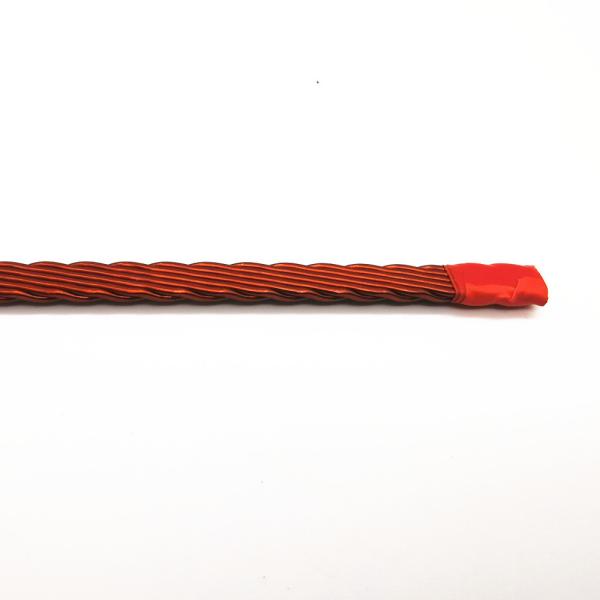

Transposition Magnet Winding Wire Ctc Conductor Enameled 0.2mm

Transposition Wire CTC Conductor Enameled Copper Litz Wire

Compared with ordinary flat wires, transposed conductors have many advantages, and at the same time, due to the relatively small size, the manufacturing cost of transformers is reduced.
1. The loss of discrete field is reduced due to the use of multiple single wires of small cross-section instead of a flat wire of large cross-section.
2. Compared with multiple parallel self-insulated single wires, since the transposed conductor is an enameled single wire, the thickness of the paint film is much thinner than that of the previous paper insulation, but the withstand voltage is several times that of the paper insulation. The insulation thickness of the common paper insulation is relatively thin, so the volume of the winding is obviously reduced, and the utilization rate of space is effectively improved.
3. Due to the transposition between single wires, the windings have high mechanical strength.

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 23 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
