    Ustc Silk Covered Enamel Coated Wire Stranded

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Copper litz wire
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    Ustc Silk Covered Enamel Coated Wire Stranded

    USTC Litz Wire Silk Covered Enameled Copper Stranded Wire


    Silk covered litz wire is insulated with nylon or dacron.The silk covered litz wire is usually wrapped around a wire and made of artificial glass.If the temperature can reach 453K after impregnation in silicone resin, it has good insulation performance and high mechanical strength. The silk covered litz wire is used in precision electrical equipment.
    The implementation of self bonding silked covered litz wire makes coil shape more beautiful.


    Name

    USTC Litz Wire Silk Covered Enameled Copper Stranded Wire

    Key word

    Copper litz wire

    Insulationh

    Enamel, polyster cover

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.05mm

    Number of strands

    130

    Type

    Silk covered litz wire


    Characteristics

    Technical requests

    Test Results

    Conclusion

    Conductor Inner diameter

    0.05±0.003 mm

    0.045-0.5mm

    OK

    Overall diameter

    ≤ 0.060 mm

    0.055

    OK

    Twist direction

    S/Z

    Z

    OK

    Strands

    130

    130

    OK

    Twist Pitch

    20.5±3 mm

    20.6

    OK

    Breakdown Voltage

    600V

    1560

    OK

    Conductor Resistance

    ≤ 75.18Ω/km

    76.16

    OK

    Solderability

    YES

    YES

    OK


    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

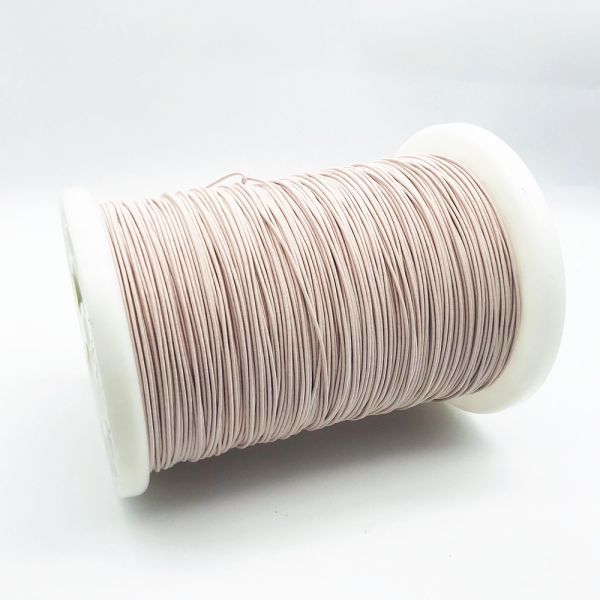

    Quality Ustc Silk Covered Enamel Coated Wire Stranded for sale
