    0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : FIW
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

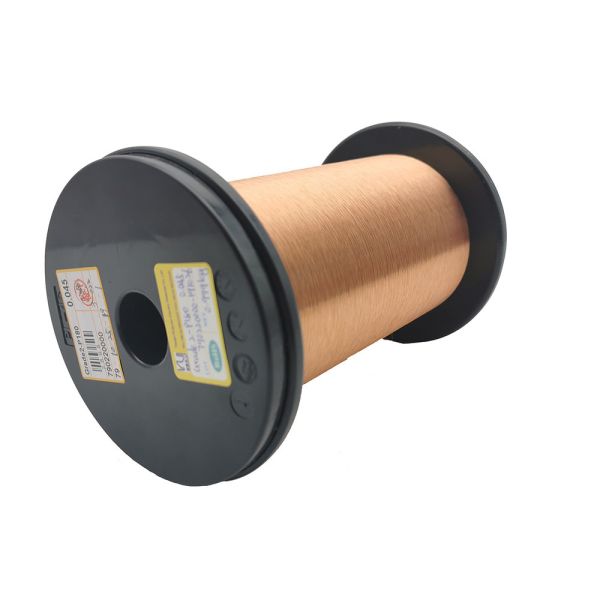

    0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

    0.1MM-1MM COPPER TRIPLE INSULATED WIRE TIW-B WITH UL CERTIFICATE


    Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).



    SPECIFICATION

    Conductor m/mEnd product m/mMaximum Conductor Resistance at 20 ℃Minimum Elongation %
    Diameter m/mTolerance m/mTarget outside diameterTolerance m/m
    0.15±0.0080.35±0.02111115
    0.16±0.0080.36±0.02908.815
    0.17±0.0080.37±0.02853.515
    0.18±0.0080.38±0.0275715
    0.19±0.0080.39±0.02676.215
    0.2±0.0080.4±0.02607.615
    0.21±0.0080.41±0.0254915
    0.22±0.0080.42±0.02498.415
    0.23±0.0080.43±0.02454.515
    0.24±0.0080.44±0.02416.215
    0.25±0.0080.45±0.02382.515
    0.26±0.0100.46±0.02358.415
    0.27±0.0100.47±0.02331.415
    0.28±0.0100.48±0.02307.315
    0.29±0.0100.49±0.02285.720
    0.3±0.0100.5±0.02262.920
    0.32±0.0100.52±0.0223020
    0.35±0.0100.55±0.02191.220
    0.37±0.0100.57±0.02170.620
    0.4±0.0100.6±0.02145.320
    0.45±0.0100.65±0.02114.220
    0.5±0.0100.7±0.0291.420
    0.55±0.0200.75±0.0278.220
    0.6±0.0200.8±0.0265.320
    0.65±0.0200.85±0.0288.320
    0.7±0.0200.9±0.0247.220
    0.75±0.0200.95±0.0241.220
    0.8±0.0201±0.0236.125
    0.85±0.0201.05±0.0231.925
    0.9±0.0201.1±0.0228.425
    0.95±0.0201.15±0.0225.425
    1±0.0301.2±0.0223.325
