Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm

    Buy cheap Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm from wholesalers

    Buy cheap Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm from wholesalers
    • Buy cheap Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm from wholesalers

    Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 4.0mm * 0.65mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm

    Polyamideimide 4.0mm * 0.65mm Rectangular Enameled Copper Wire


    Enameled aluminum and copper round, flat wire have good thermal shock resistance, high softening breakdown temperature, excellent mechanical strength, good solvent resistance and refrigerant resistance. It is widely used in electrical appliances with high heat resistance requirements. Some typical applications include: Transformer Motor Instrument Generator UPS power supply Welder


    Characteristics
    Standard
    Test Result
    Appearance
    Smooth Equality
    Smooth Equality
    Conductor Diameter
    Width
    4.00±0.060
    0.398
    Thickness
    0.65±0.009
    0.650
    Thickness of Insulation
    Width
    0.020
    0.043
    Thickness
    0.030
    0.044
    Overall Diameter
    Width
    4.100
    4.025
    Thickness
    0.700
    0.694
    Pinhole
    Max ≤3hole/m
    0
    Elongation
    Min ≥30 %
    42
    Flexibility and Adherence
    No crack
    No crack
    Conductor Resistance (Ω/km at 20℃)
    Max 7.07
    6.93
    Breakdown Voltage
    Min. 0.70kv
    2.00
    Heat shock
    No Crack
    No Crack
    Conclusion

    0

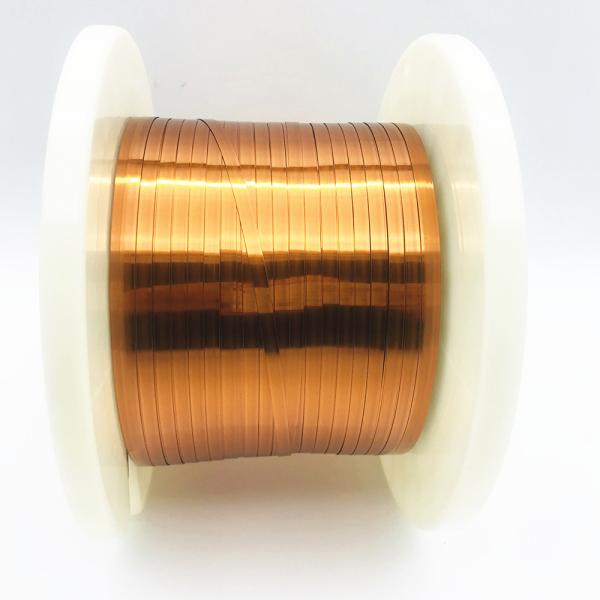

    Quality Polyamideimide Rectangular Enamelled Copper Wire 4.0mm * 0.65mm for sale
