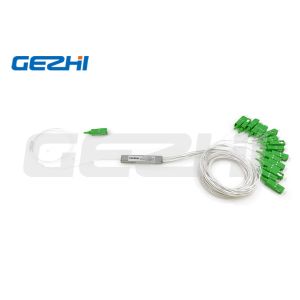

    PON FTTH Network Fiber Optic Mini PLC Splitter 1*16 With SC APC Connector

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : 1*16 PLC Splitter
    Certification : CE RoHS,ISO9001
    Price : N
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs per month
    • Product Details
    • Company Profile

    PON FTTH Network Fiber Optic Mini PLC Splitter 1*16 With SC APC Connector

    FTTH Fiber Optic Mini Type PLC Splitter 1*16 Anatel PON FTTH Network with SC APC Connector


    Product Description


    Fiber Optic PLC Splitter mini module 1x16 with SC/APC connector

    As fiber optic link becomes more and more acceptable by average consumers, Passive Optical Network (PON) systems are more widely deployed in common homes. Fiber optic splitter is an indispensable passive optical device in PON systems. Optical splitters can be divided into Fused Biconical Taper (FBT) splitter and Planar Lightwave Circuit (PLC) splitter. PLC splitter is newer than FBT splitter and is also the focus of this post.


    Appliacation:

      Features:


      FTTH

      Low insertion loss
      CATVStable polarization

      Passive optical network

      Compact design

      wired TV internet

      Excellent channel uniformity

      PON-FTTX network

      High stability and reliability

      Telcordia GR.1209 and GR.1221

      Ordering information:

      Product typeInlet and exit diameterInlet and fiber lengthsize

      1XN or 2XN

      0102=1X2

      0103=1X3

      0104=1X4

      0105=1X5

      0106=1X6

      0107=1X7

      0108=1X8

      0112=1X12

      0116=1X16

      0124=1X24

      0132=1X32

      0164=1X64

      1128=1X128

      2=0.9mm

      0=0.5M

      1=1.0M

      2=1.5M

      3=2.0M

      4=2.5M

      S=Customized

      1x2

      to 4x7x60mm

      1x8


      1x12

      to 4x12x60 mm

      1x16


      1x24

      to 6x20x80 mm

      1x32


      1x64 6x40x100 mm


      Specifications:

      ItemParameter
      IL(dB)13.5
      Uniformity (dB)≤1.0
      PDL (dB)≤0.3
      RL(dB)≥55
      Directionality (dB)≥55
      Fiber length (m)1.0 or customized
      Temperature stability (dB)-40℃- 85℃(≤0.5)
      Working temperature40℃- 85℃
      Fiber typeG657A1 or customized

      Note: The above IL is without the connector parameters.
      1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.


      Package
