Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor

    Buy cheap Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor from wholesalers

    Buy cheap Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor from wholesalers
    • Buy cheap Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor from wholesalers

    Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : UEW
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor

    Super Thin 0.071mm Class 155 Enameled Copper Wire For Motor Winding


    Magnet wire or enameled copper wire is a copper wire coated with a very thin layer of insulation.Enameled copper wire is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.


    Name

    Super Thin 0.071mm Class 155 Enameled Copper Wire For Motor Winding

    Key wordEnameled copper wire
    InsulationPolyurethane
    Thermal rating155degree
    Diameter of the enameled copper wire0.06mm
    TypeEnameled copper wire

    NO.
    Characteristics
    Technical requests
    Test Results
    Conclusion
    Sample1
    Sample 2
    Sample 3
    1
    Surface
    Good
    OK
    OK
    OK
    OK
    2
    Bare Wire Diameter
    0.071±
    0.002
    0.071

    0.071
    0.071
    OK
    0.002
    3
    Insulation thickness
    ≥ 0.007 mm
    0.0110
    0.0110
    0.0110
    OK
    4
    Overall diameter
    ≤ 0.085mm
    0.0820
    0.0820
    0.0820
    OK
    5
    Electrical Resistance
    ≤4.611Ω/m
    4.278
    4.254
    4.253
    OK
    6
    Elongation
    ≥ 15 %
    19
    18
    18
    OK
    7
    Breakdown voltage
    ≥400 V
    1542
    1442
    1486
    OK
    8
    Pinbole test
    ≤ 5 hole/5m
    0
    0
    0
    OK
    9
    Enamel continuity
    ≤ 60 hole/30m
    0
    0
    0
    OK
    Remark
    Test items
    Technical Requests
    Results
    Conclusion
    1
    Adhesive
    No crack
    OK
    Approval
    2
    Cut-through
    200℃ 2mins no crack
    OK
    3
    Heat Shock
    175±5℃/30min no crack
    OK
    4
    Solder Ability
    390± 5℃ 2Sec Smooth
    OK

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

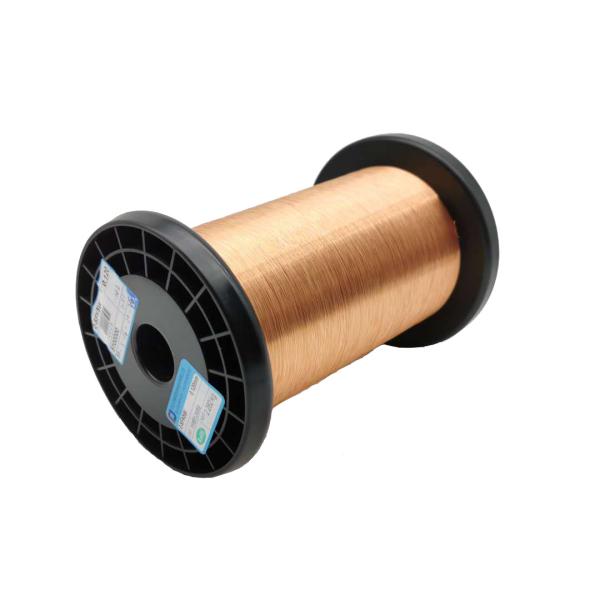

    Quality Super Thin 0.071mm Enamelled Winding Wire Class 155 For Motor for sale
