| Brand Name : | Ming tech |
| Model Number : | IDV-10-A399-KBC-JSSB |
| Certification : | Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS |
| Price : | negotiate |
| Delivery Time : | 15 days< |
| Supply Ability : | 1300 sets per days |
| Payment Terms : | T/T, PayPal, Western Union, D/P, CommBank. |

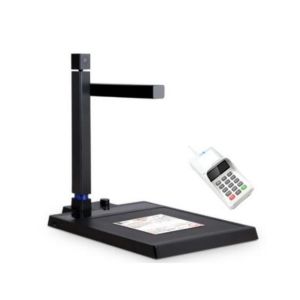

Document Scanner with encryption KB
Features
Ø USB2.0 full speed, HID connection.
Ø Smart card read/write
Ø Standard ISO 14443 type A/B
Ø Standard ISO 7816
Ø Shooting regulation of A3/A4
Ø Application area support documents, books, objects, photos, etc
Ø OS support Windows any version.
Technical Specifications
| Project | Parameters Of Specifications |
| Power Interface | |
| Power Source | USB |
| Supply Voltage | input:100-240V,50/60 Hz. output:9V/1.5A |
| Supply Current | ≦300mA |
| Cable Length | 1.8m,Fixed |
| Communication Interface | |
| Protocol | USB HID |
| Speed | USB Full Speed(12Mbps) |
| Contact IC Card Interface | |
| Card standard | Standard ISO7816 T=0/T=1 Smart Card |
| Speed | 9600~115200 bps |
| Protection | short-circuit protection and overcurrent protection |
| Endurance | Minimum 100.000 |
| Contactless IC Card Interface | |
| Card standard | ISO14443 Type A&B Contactless Smart Card |
| Protocol | ISO14443 /1/2/3/4 T=CL |
| Frequency | 13.56MHz±7kHz |
| Speed | 106Kbps |
| SAM | |
| Number of Slots | 4 |
| Standard | ISO7816 protocol PSAM |
| Scanner | |
| Pixel of camera | Main camera:10 million pixels; Face identification camera:2 million pixels(have microphone); |
| Video format | MJPG,YUY2 |
| Resolution | Main camera: MJPG:3664×2744,3264×2448,2592×1944,2048×1536,1920×1080,1600×1020,1280×960,1280×720,1024×768, 800×600,640×480,320×240; YUY2:3664×2744,3264×2448,2592×1944,2048×1536,1920×1080,1600×1020,1280×960,1280×720,1024×768,800×600,640×480,320×240; Face identification camera: MJPG:1600×1200,1280×960,1024×768,640×480, 320×240; YUY2:1024×768,640×480,320×240; |
| Shooting range | A4(210mm*297mm),A3(297mm*420mm) |
| Height of Shoot | A4≈294.62mm,A3≈404.62mm |
| Intelligent replenishment | Main camera:natural light,LED lighting,touch switch,level 3 brightness adjustable |
| Others | |
| Expand | Two USB HUB |
| Beep | Support |
| Device Vision | Support |
| Device SN | Support |
| OS requirement | Apply to any windows version. |
| Working Environment | |
| Temperature | 0°C ~ 60°C |
| Humidity | 10% ~ 90% |
| Technical Support | |
| Driver | No driver |
| API | Windows 32bit SDK |
| Technical Service | Supply SDK and Demo |
| Certifications | Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS |
| Keyboard | Encryption KB |
| Connection | USB slots |
| Voltage | 5V |
| Connection speed | 12 Mbps full speed |
| Current | 110mA |
| Cable | 1.8m |
| Keyboard elements | |
| Cover | Anti-peep |
| Buttons | 15 in totals, 10 numbers buttons, ‘confirm’& ‘cancel’, ‘back’, and backup function buttons: ‘F2’ ‘F3’. |
| Life | Above 200,000 times. |
| Material | Rubber |
| Display | LCD, 16 ASCII no. each 2 lines. |
| Encryption algorithm | DES, 3DES. |
| Code types | 1-D: Code128 ,Codabar,Code93 ,Code39 ,Code39 Full ASCII,Code11,EAN-8,EAN-13,ITF-14,ITF-25, UPC-A,UPC-E,ISSN,ISBN,Industrial 25,Standard 2 of 5,GS1 Databar,MSI,MSI-Plessey,GS1-128. 2D:QR Code,Data Matrix,PDF417,MicroQR. |
| Accuracy | 1-D≥3.3mil,2-D≥10mil |
| Reading mode | Default order scanner. |
|   |
