    5kg Cryogenic Electro Optical Uav Thermal Camera Pod Weight ≤5000g

    Electro Optical Pod Eagle-eye5000 Electro Optical Pod Weight ≤5000g


    Descriptions of Electro Pod:

    Eagle-eye5000 photoelectric pod is equipped with 1080P, 30x optical zoom high-performance camera thermal imaging camera, laser range finder and satellite integrated inertial navigation. Light and small UAV low-altitude target search, monitoring and shooting, target positioning and other task requirements.


    Features of Electro Pod:

    • Can use the visible light sensor to acquire and output high-definition visible light video in real time;
    • Can use infrared thermal imager to acquire and output infrared video in real time;²
    • High-precision laser ranging function;²
    • With manual mode, lock mode, scan mode and automatic tracking modes;²
    • It has the function of completing target positioning and geographic guidance according to the carrier information;²
    • With high-definition video storage function;²
    • Multi-target detection and prompt function;²
    • With image enhancement function; with video storage function, about 18 hours of high-definition video storage.²
    Specifications of Electro Pod:

    Specification

    Type: Gyro Stabilized

    Weight: ≤5kg

    Dimensions: ≤φ190mm×279.9mm

    Infrared Thermal Imaging

    Detector uncooled

    Resolution 640×512

    Working band 8μm ~ 12μm

    Field of view 7.32°×5.86°~35.497°×28.39°

    Detection distance: ≥3km,

    Recognition distance: ≥1.5km

    Features

    Two axes (pitch axis: +20°~-110°;

    Heading axis: NX360°;

    Stable accuracy: ≤ 50μrad(RMS)

    Angle measurement accuracy ≤1mrad

    Visible Light Imaging

    Resolution 1920×1080

    Working band 0.4µm~0.7µm

    FOV 2.3°×1.3°~63°×35.4°

    Detection distance: ≥6km

    Recognition distance: ≥4km

    Laser Ranging


    Working wavelength 1.54μm

    Ranging range 50m~6000m

    Ranging accuracy ≤2m

    Tracking module

    Tracking accuracy ≤0.6mrad (RMS)

    Maximum search angular velocity ≥60°/s

    Maximum tracking angular velocity ≥10°/s

    External interface

    Control interface :

    2 way RS422 serial port

    Video output :

    1 channel network digital video output

    1 channel HD-SDI video output

    Power supply

    Voltage: 28 VDC,

    Power consumption: ≤50W (average),

    ≤150W (peak)

    Environmental conditions

    Working temperature -20℃~+55℃

    Storage temperature - 40℃~+65℃

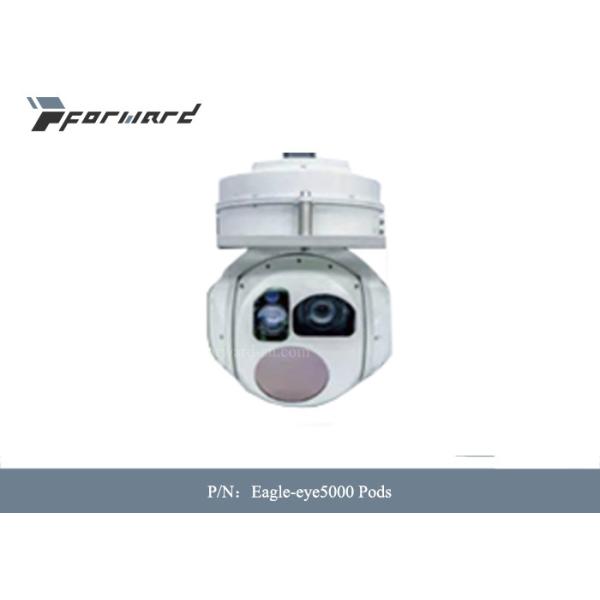

    Quality 5kg Cryogenic Electro Optical Uav Thermal Camera Pod Weight ≤5000g for sale
