Adjustable speed Stucco spraying Cement Mortar Spray Machine
automatic
Cement Mortar Spray Machine
Application of Cement Mortar Spray Machine:
1. Pressure grouting for reservoir, hydropower, dam, port, dwarf
etc;
2. Basic treatment and reinforcement grouting of soft foundation;
3. Backfill grouting or bolting grouting for tunnel, subway,mining
construction;
4. Slurry circulation and mortar backfill for ground-source heat
pump deep well construction ( new technology);
5. Building mortar conveying for floor, masonry or plastering;
6. Conveying and spraying of cement slurry, commercial mortar or
equivalent mortar etc.
7. Spraying fireproof material, thermal insulation material etc.
Parameters of Cement Mortar Spray Machine:
| Model | TY-511 |
| Motor power | 7.5 KW |
| Conveying pressure | 3 Mpa |
| Conveying height | 10 m |
| Conveying flow | 3 m3/h |
| Hopper volume | 5 L |
| Matching air compressor | 3 m3/h |
| Matching nuzzle | 32 |
Spraying Material of Cement Mortar Spray Machine:
1. Cement,mortar,putty powder;
2. Paint, latex paint, powder paint;
3. Waterproof material, fireproof material;
4. Thermal insulation, sound-absorbing material,etc.
Features of Cement Mortar Spray Machine:
1. Screw pump,high working pressure, flow stability.
2. Pump and air compressor integration, easy to move
3. High efficiency,save material,low labor intensity.
4. Spray dry powder, mortar and ordinary mortar.
5. Uniform spraying, strong adhesion.
6. Easy to operate,work reliably,long service life.

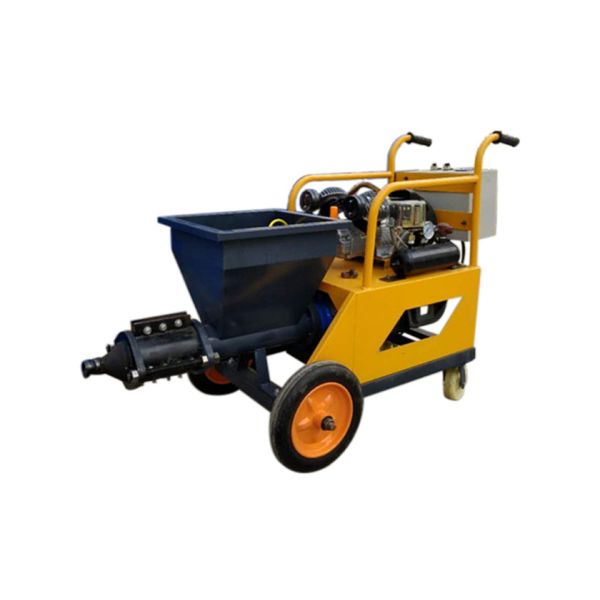

Pictures of Cement Mortar Spray Machine:
