    LMV2011MA/LMV2011MAX SOP8 Integrated Circuit New And Original

    Ask Lasest Price
    Brand Name : TI
    Model Number : LMV2011MA/LMV2011MAX
    Supply Ability : 16500pcs
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    LMV2011MA/LMV2011MAX SOP8 Integrated Circuit New And Original

    ISO9001.pdf

    LMV2011MA is a single transistor operational amplifier with the following parameters:
    Power supply voltage range: 2.7V to 5.5V
    Normally open amplifier gain: 40dB to 80dB
    Maximum output current: 25mA
    Normally open input resistance: 1M Ω
    Operating temperature range: -40 ° C to 125 ° C
    This device is suitable for applications such as audio amplification, sensors, and signal transmission. Compared with LMV612MMX, LMV722MMX, and LMV824MTX, LMV2011MA has a smaller packaging and lower power consumption. Some of these applications and conclusions include:
    Audio amplification: LMV2011MA is suitable for audio amplifier designs that require high gain and low distortion to improve the performance and sound quality of audio systems.
    Sensor signal amplification: This amplifier can amplify small sensor signals for easier detection and analysis. It can also be used to amplify the signal output by the amplifier.
    Signal transmission: LMV2011MA can also be used to transmit signals from one circuit to another to enhance signal strength and quality. This can help solve problems such as signal-to-noise ratio in signal transmission.
    Low power applications: The low power consumption characteristics of LMV2011MA make it very suitable for battery powered applications.
    The packaging of LMV2011MA is SOIC8, which is very suitable for applications on small circuit boards.


    EU RoHSNot Compliant
    ECCN (US)EAR99
    Part StatusObsolete
    SVHCYes
    SVHC Exceeds ThresholdYes
    AutomotiveNo
    PPAPNo
    TypePrecision Amplifier
    Manufacturer TypePrecision Amplifier
    Number of Channels per Chip1
    Rail to RailRail to Rail Output
    Maximum Input Offset Voltage (mV)0.025@5V
    Minimum Single Supply Voltage (V)2.7
    Maximum Single Supply Voltage (V)5.25
    Maximum Input Offset Current (uA)0.000006(Typ)@5V
    Typical Input Bias Current (uA)0.000003@5V
    Maximum Supply Current (mA)1.2@5V
    Typical Output Current (mA)8@5V
    Power Supply TypeSingle
    Typical Slew Rate (V/us)4@5V
    Typical Input Noise Voltage Density (nV/rtHz)35@5V
    Typical Voltage Gain (dB)132
    Typical Noninverting Input Current Noise Density (pA/rtHz)0.15@5V
    Minimum PSRR (dB)120(Typ)
    Minimum CMRR (dB)130(Typ)
    Minimum CMRR Range (dB)>=115
    Typical Gain Bandwidth Product (MHz)3
    Typical Settling Time (ns)100000
    Shut Down SupportNo
    Minimum Operating Temperature (°C)0
    Maximum Operating Temperature (°C)70
    Supplier Temperature GradeCommercial
    PackagingRail
    MountingSurface Mount
    Package Height1.5(Max)
    Package Width3.98(Max)
    Package Length5(Max)
    PCB changed8
    Standard Package NameSO
    Supplier PackageSOIC
    Pin Count8
    Lead ShapeGull-wing

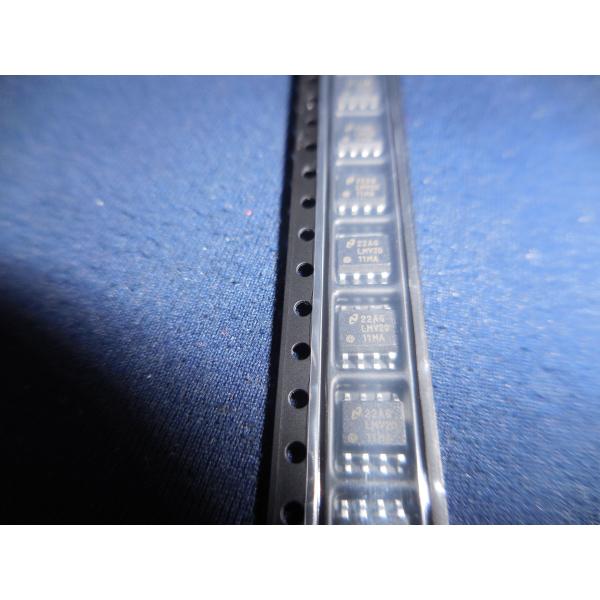

    Quality LMV2011MA/LMV2011MAX SOP8  Integrated Circuit New And Original for sale
