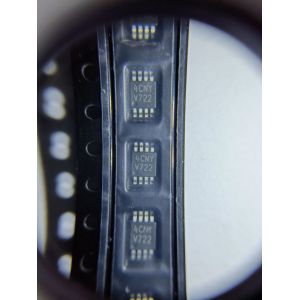

    LMV722MM/LMV722MMX VSSOP-8 Integrated Circuit New And Original

    Ask Lasest Price
    Brand Name : TI
    Model Number : LMV722MM/LMV722MMX
    Supply Ability : 16500pcs
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    LMV722MM/LMV722MMX VSSOP-8 Integrated Circuit New And Original

    ISO9001.pdf

    LMV722MMX is a dual operational amplifier with the following parameters:
    Power supply voltage range: 2.7V to 5.5V
    Normally open amplifier gain: 40dB to 80dB
    Maximum output current: 20mA
    Normally open input resistance: 100k Ω
    Operating temperature range: -40 ° C to 125 ° C
    This device is suitable for applications such as audio amplification, sensors, and signal transmission. Compared with LMV612MMX, LMV722MMX has higher gain and lower input resistance, making it suitable for higher precision applications. Some of these applications and conclusions include:
    Audio amplification: LMV722MMX is suitable for audio amplifier designs that require high gain and low distortion to improve the performance and sound quality of audio systems.
    Sensor signal amplification: This amplifier can amplify small sensor signals for easier detection and analysis. It can also be used to amplify the signal output by the amplifier.
    Signal transmission: LMV722MMX can also be used to transmit signals from one circuit to another to enhance signal strength and quality. This can help solve problems such as signal-to-noise ratio in signal transmission.
    The packaging of LMV722MMX is VSSOP-8, with a size of 3.00mm x 3.00mm, which is very suitable for applications on small circuit boards.


    EU RoHSNot Compliant
    ECCN (US)EAR99
    Part StatusObsolete
    SVHCYes
    SVHC Exceeds ThresholdYes
    AutomotiveNo
    PPAPNo
    TypeLow Noise Amplifier
    Manufacturer TypeLow Noise Amplifier
    Number of Channels per Chip2
    Rail to RailRail to Rail Output
    Process TechnologyBiCMOS
    Output TypeCMOS
    Maximum Input Offset Voltage (mV)3@5V
    Minimum Single Supply Voltage (V)2.2
    Maximum Single Supply Voltage (V)5.5
    Maximum Input Offset Current (uA)0.025(Typ)@5V
    Typical Input Bias Current (uA)0.26@5V
    Maximum Supply Current (mA)2.4@5V
    Typical Output Current (mA)52.6@5V
    Power Supply TypeSingle
    Typical Slew Rate (V/us)5.25@5V
    Typical Input Noise Voltage Density (nV/rtHz)8.5@5V
    Typical Voltage Gain (dB)94
    Typical Noninverting Input Current Noise Density (pA/rtHz)0.2@5V
    Minimum PSRR (dB)70
    Minimum CMRR (dB)70
    Minimum CMRR Range (dB)70 to 71
    Typical Gain Bandwidth Product (MHz)10
    Shut Down SupportNo
    Minimum Operating Temperature (°C)-40
    Maximum Operating Temperature (°C)85
    Supplier Temperature GradeIndustrial
    PackagingTape and Reel
    MountingSurface Mount
    Package Height0.95(Max)
    Package Width3.1(Max)
    Package Length3.1(Max)
    PCB changed8
    Standard Package NameSOP
    Supplier PackageVSSOP
    Pin Count8
    Lead ShapeGull-wing
