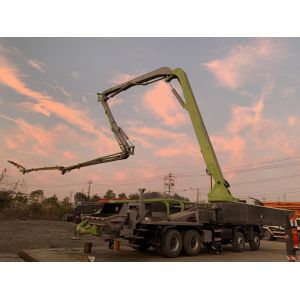

180M3/H 60m Zoomlion Used Concrete Pump Truck 4 Alex Actors 4141
Main Parameters
Distribution valve | S-valve |
|---|
| Max. Concrete Output | m3/h | 180 |
| Max. Concrete Pressure | bar | 90 |
| Delivery Cylinder | mm | 260 |
| Stroke Length | mm | 2100 |
| Strokes | 1/min | 27 |
| Hopper Capacity | L | 600 |
| Filling height | mm | 1540 |
| Hydraulic System | Closed |
| Hydraulic oil cooling | Double fans |
| High/Low Press. Switch | Manual |
| Lubrication on pump | Automatic |
| Lubrication on hopper | Automatic |
| GPS Data Manage | Optional |
Boom Control Valve | Proportional |
|---|
| Number of Arms | | 6 |
| Folding System | | RZ |
| Max. Reach Vertical | m | 60 |
| Max. Reach Horizontal | m | 56 |
| Pipeline | DN125/5.5 |
| Slewing Range | ±350° |
| Slewing Motors | 2 motors |
| Remote Control System | Radio |
| Water Pump | 20L/min, 60bar |
| Tool kits with box | Standard |
• Compact in design, 60m pump mounted on 4-axle truck.
• Efficient pump unit, two Rexroth main pumps gives a big output,
easy to use and maintenance.
• Agile placing boom with 6 arms with unfolding height 14m only,
which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor, it
monitors the pump intelligently on working data management,
real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components
FAQ
Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 330V 50Hz.
Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty
terms.
Q: What is the payment terms?
A: We accept L/C, T/T. 30% by T/T in advance, 70% by T/T before
dispatching from factory.
