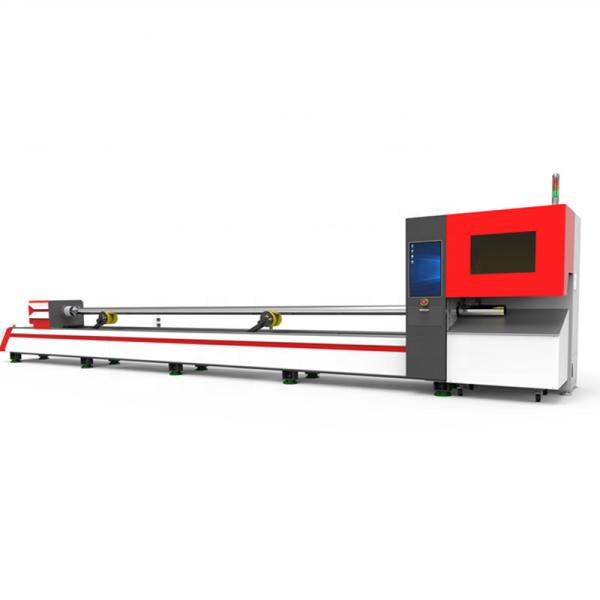

Stainless steel tube fiber laser cutting machine 1000W 2000W tube
laser cutting machine
1. High rigidity heavy chassis, reducing the vibration generated
during the high-speed cutting process.
2. Processing circular tube, square tube, rectangular tube.
3. The laser cutting head does not come into contact with the
surface of the material and does not scratch the workpiece.
4. The slit is the narrowest, the heat affected zone is the
smallest, the local deformation of the workpiece is very small, and
there is no mechanical deformation.
5. It has good processing flexibility, can process any pattern, and
can cut pipes and other profiles.
6. Non-deformable cutting can be performed on materials of any
hardness such as steel plates, stainless steel, aluminum alloy
plates, and hard alloys.
| Model | 6020 |
| Working area | 6000mm*200mm | Reposition accuracy | ±0.2-0.3mm/1000mm |
| Laser power | 1000W | Graphic format supported | IGS;SAT;JHB |
| Transmission system | Import diver and motor | Working environment | Temp:0-40℃,humidity: ≤80%, No condensation |
| Lubrication system | Full-automatic | Dimension | 11000x2500x2100mm |
| Maximum speed | 100m/min | Gross weight | 7500KG |
| Maximum accelerated speed | 1.0G | Position accuracy | ±0.2-0.3mm/1000mm |
| Max cutting diameter | 200mm | Total power | (Around) 20KW |
| Laser type | Fiber laser generator | Min cutting diameter | 16mm |
| Max cutting length | 6000mm | Min cutting length | 200mm |
Application:
1. Applicable tube type : Round tube, square tube, rectangular
tube, oval tube, D-type T-shaped H-shaped steel, channel steel,
angle steel, etc.
2. Applicable materials : Stainless steel, mild steel, galvanized,
copper, brass, aluminum, etc.
3. Applicable Industry: Steel structure, heavy machinery, fire
fighting, metal racks, tubes processing industry etc.

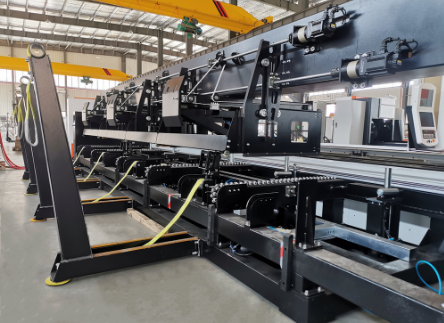

Tube Automatic Bundle Loader Tube automatic bundle loader saves labor and loading time, result
in mass production purpose.
Round tube/pipe and rectangular tube/pipe can be fully automated
loading without human intervention. Other shaped pipe can be
semi-automatic feeding manually. |  |
 | Weld Recognition Function When cutting the pipe, the perforation avoids the weld, so that the
pipe is not easily deformed. |
Heavy Duty Chuck
This chuck can load maximum of 400kg pipe and clamp range of 10
-320mm pipes. Especially suitable for heavy steel construction
industry. |  |
Optional - Automatic Slag Removal For some of high applications demands, the third shaft pick-up
device can be added to prevent slag from adhering to the inner
wall. |  |
 | Floating Support / Collecting Device Automatic collecting device Real-time support
Prevent pipe whipping
Guaranteed accuracy and tube cutting effect |
