1000LPH Brackish Water RO System Salty Underground Water Treatment
Purification Plant TDS 5000PPM For Irrigation/ Daily
Brackish Water Reverse Osmosis Plant Description
The reverse osmosis(RO) water treatment plant is an equipment to
purify water with the action of pressure difference of semi
permeable membrane. RO membranes can effectively remove majority of organics, harmful substances,
bacteria, particulates etc in the raw water. RO system is widely used in water treatment, purification for tap
water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power
stations, electronic industries, cosmetics production,
medicine(pharmaceuticals) manufactories, and medical treatment(such
as hemodialysis). It is a key equipment for pure water plant and
ultrapure water equipment.
| Raw water→ | Bottle ,Bag water | City water | Brackish water | Sea water |
| Usage↓ |
| TDS range | 2-10PPM | 100-1000PPM | 2000-20000PPM | 20000-40000PPM |
| Direct Drinking | Yes | Yes / No | NO | NO |
| Cooking, human consumption, washing | Yes | Yes | NO | NO |
| Irrigation, industry, animal drinking | Yes | Yes | NO | NO |

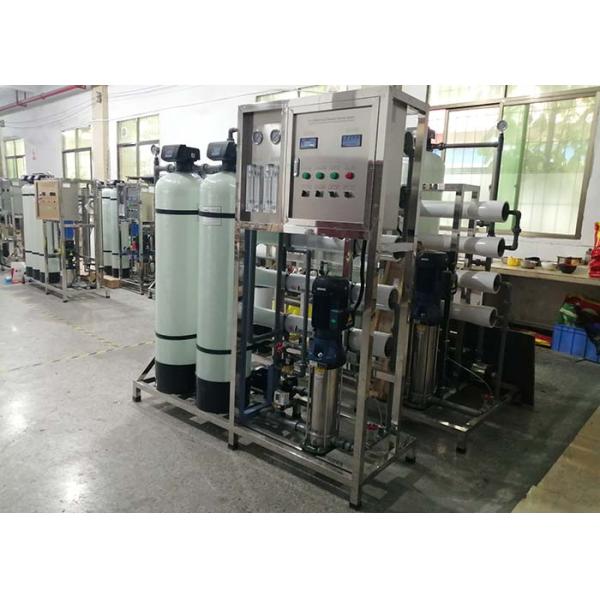

Brackish Water Reverse Osmosis Plant Process
Raw water ->Raw water tank(buyer supply) -> Raw water pump
-> Quartz sand filter ->Active carbon filter->Antiscale
dosing system->Security filter-> High pressure pump -> RO
equipment->Pure water tank(buyer supply)->Water supply point
There are several kinds of consumables you need to replace
regularly. (1000LPH)
a. Quartz sand: replaced about every 15 months. 100kg/bag
b. Activated carbon: replaced about every 15 months. 50kg/bag
c. PP Filter cartridge: replaced about every 1 month
d. Ro membrane: replaced about every 2 year
We suggest you buy 1- 2 years of PP filter cartridges together with
machine.
Because these PP filter cartridges need to replace every month.
Some parts function:
| 1. Raw water pump: provide needed pressure for every pre-treatment filter; |
| 2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big
particles impurities, suspended substances, colloids etc. Important
to remove iron and sediments you mentioned;^^ |
| 3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color,
odor, residual chlorine and organics substances; |
| 4. Security filter: prevent large particles, bacteria, viruses into RO membrane,
accuracy is 5µm; |
| 5. High pressure pump: provide needed working pressure for RO system, ensure production
capacity of pure water; |
| 6. RO system: can remove particles, colloids, organic impurities, heavy metal
ions, bacteria, virus, heat source etc. harmful substances and 99%
dissolved salts. |
| 7. Ozone generator(for bottled drinking): can continue to kill bacteria even water
fill into bottled,viruses,cell damage,atc... |
Brackish Water Reverse Osmosis Plant Application
Feed water(source water):
City water, river water, lake water, underground water(borehole,
well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical
products and pure water
2. Food and beverage industry: filter for mineral water, wines and
fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
