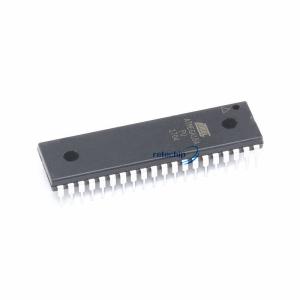

8-bit Microcontroller with 16K Bytes In-System Programmable Flash
Specifications
Product Attribute
Attribute Value
ATmega16A
PDIP-40
16 kB
8 bit
10 bit
16 MHz
32 I/O
1 kB
2.7 V
5.5 V
- 40 C
+ 85 C
Tube
Data RAM Type:
SRAM
Data ROM Size:
512 B
Data ROM Type:
EEPROM
Height:
4.83 mm
Interface Type:
SPI, TWI, USART
Number of ADC Channels:
8 Channel
Number of Timers/Counters:
3 Timer
Processor Series:
megaAVR
Program Memory Type:
Flash
Description
The ATmega16A is a low-power CMOS 8-bit microcontroller based on
the Atmel AVR enhanced RISC architecture. By executing powerful
instructions in a single clock cycle, the ATmega16A achieves
throughputs approaching 1MIPS per MHz allowing the system designer
to optimize power consumption versus processing speed.
Features
High-performance, Low-power Atmel AVR 8-bit Microcontroller z
Advanced RISC Architecture
̶ 131 Powerful Instructions – Most Single-clock Cycle Execution
̶ 32 x 8 General Purpose Working Registers
̶ Fully Static Operation
̶ Up to 16MIPS Throughput at 16MHz
̶ On-chip 2-cycle Multiplier z High Endurance Non-volatile Memory
segments
̶ 16KBytes of In-System Self-programmable Flash program memory
̶ 512Bytes EEPROM
̶ 1KByte Internal SRAM
̶ Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
̶ Data retention: 20 years at 85°C/100 years at 25°C(1)
̶ Optional Boot Code Section with Independent Lock Bits z In-System
Programming by On-chip Boot Program z True Read-While-Write
Operation
̶ Programming Lock for Software Security z JTAG (IEEE std. 1149.1
Compliant) Interface
̶ Boundary-scan Capabilities According to the JTAG Standard
̶ Extensive On-chip Debug Support
̶ Programming of Flash, EEPROM, Fuses, and Lock Bits through the
JTAG Interface z Peripheral Features
̶ Two 8-bit Timer/Counters with Separate Prescalers and Compare
Modes
̶ One 16-bit Timer/Counter with Separate Prescaler, Compare Mode,
and Capture Mode
̶ Real Time Counter with Separate Oscillator
̶ Four PWM Channels
̶ 8-channel, 10-bit ADC
