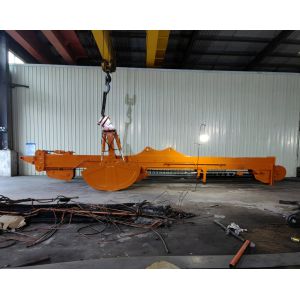

Excavator Spare Parts telescopic dipper Arm & Boom long reach
Construction Machinery PC360 30M
2024 Zhonghe Machinery Catalogue 3M.pdf
3-section Telescopic arm
Technical Specification
Model Length vertical digging depth Transportation height Bucket
capacity Working weight
20-25T 18m 18m 3m 0.5m³ 3.4T
30-35T 28m 28m 3.2m 2m³ 7T
40-50T 32m 32m 4m 2.2m³ 9T
1. Structure composition: The three-section telescopic arm is the
same as the log collecting arm, and the telescopic arm usually
carries a clamshell bucket or GP bucket.
2. Product details: The telescopic arm can be made of Q690D-Q960
material according to the requirements, with much deeper excavation
depth, simple and convenient operation, safe and reliable.
3. Scope of application: subway, foundation pit, basement, tunnel
and other narrow deep excavation conditions.
The simulated diagram of Hydraulic Teledipper
The introduce of Excavator long reach telescopic arm factory
Established in 2018, Kaiping Zhonghe Machinery Manufacturing Co.,
Ltd. is a combination of manufacturing and trading, specializing in
customizing different kinds of excavator boom arms and attachments.
Our products, including excavator long reach booms, demolition
arms, 2-3 sections telescopic arms, tunnel arms, standard/rock
buckets, grippers, and rippers, have been selling well in more than
40 countries and areas.
We are located in Cuishanhu New District, Kaiping City, Jiangmen
City, Guangdong Province, China, and we boast a 18000㎡ steel structure workshop with a large number of high precision
processing equipment and a strong and cohesive team of over 100 experienced technical staff, 50 welding workers with over 7 years experience, 30 senior designers, and a high-tech R&D team(10+ years on customization, 100+ technical patents), strict production system (6+ years quality control and cost control) and warm-hearted service
team. Our annual output of various types of excavator boom arms can reach
up to 600 sets.
Kaiping Zhonghe Machinery Manufacturing Co., Ltd. are committed to providing our customers with products of the
highest quality at a moderate price, with quick response and
appropriate warranty. We strive to uphold our core principles of
"Merit Quality, Sincerity Management, and Customer Satisfaction".
FAQ
Q1: What is the Warranty of theClamshell Telescopic Arm?
The warranty period is one year
Please contact with Sophia for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
