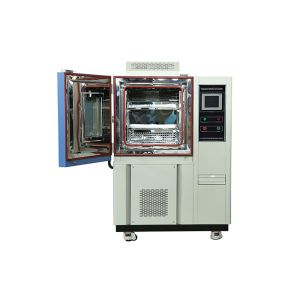

Air Cooled Temperature Humidity Test Chamber Environmental Simulation TH-100

Air Cooled Temperature Humidity Environmental Simulation Chamber TH-100

Temperature Humidity Environmental Simulation Chamber,The purpose of a temperature test is to verify the resistance of a specimen to the environmental influence of temperature. The tests are aimed at the suitability for use and storage at low and high temperatures. In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing are used in.

Air Cooled Temperature Humidity Environmental Simulation Chamber is widely used in the temperature variation test, cold resistance test and storage with low-temperature in the foelds of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.

• Temperature control and display unit
• Humidity control and display unit
• Programmable color LCD touch screen controller
• Viewing window with interior lighting.
• Test hole with silicone screw plug.
• 2 pieces of adjustable and removable mesh shelving.
• Bottom install 4 castors for ease moving, and with brakes function
• Programs reach to 999 groups and 999 sections
• Safety protection system
• Automatic Water Supply Inlet
• Can perform long time 85 °C/85 % RH test
• Interior material is high quality SUS304 stainless steel

Air Cooled Temperature Humidity Environmental Simulation Chamber Schematic Diagram.

Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves

Air Circulation

3 Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board.

Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.

Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage

Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply

Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network

Large Viewing Window

Interior lighting

Window coated with conducting film to protect it from frost.

Size is 250*300mm W*H.

Safety Protection

Over temperature protection,

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection

Export Standard Wooden Box.

Gross Weight: 370KG, Package size: 3.3 m³.

Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.

Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.

Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
