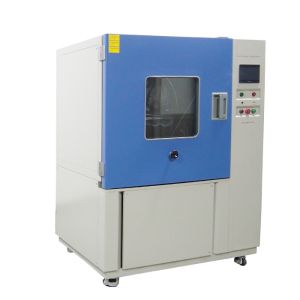

    IEC 60529 Water Spray Test Chamber Waterproof Tester

    Ask Lasest Price
    Brand Name : LIB
    Model Number : R-800
    Certification : IEC60529,CE,RoHS,
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability : 360 sets / quarter
    Delivery Time : 18 days ( check if have stock)
    • Product Details
    • Company Profile

    IEC 60529 Water Spray Test Chamber Waterproof Tester

    IEC 60529 Waterproof Tester


    Description


    IEC 60529 waterproof tester,The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

    Main Technical Parameter

    NameIEC 60529 Waterproof Tester
    ModelR-800
    Internal dimensions (mm)800*800*800
    Overall dimensions (mm)1020*1360*1560
    Oscillating tube radius400mm(IPX1 IPX2)
    Spraying hole diameterφ0.4mm(IPX1 IPX2)
    Hole spacing50 mm
    Oscillating tube range±45°, ±60°, ±90°, ±180°(theoretical value) (IPX3 IPX4)
    Turntable rotation speed1r/min, or steeples speed regulating (optional)
    ControllerProgrammable color display touch screen controller, PC Link with software, R-232 interface
    Water pressure controlFlow meter
    Observation windowLarge viewing window with wiper
    Water supply systemStorage water tank, booster pump, Automatic water supply, Water purification system, Water saving
    Safety protection deviceElectric leakage, short circuit, motor overheating, over-current protection
    Exterior materialSteel Plate with protective coating
    Interior materialSUS304 stainless steel
    PowerAC380V 50HZ
    StandardIEC 60529

    LIB INDUSTRY IP Equipment


    IP equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX3 ,IPX4 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.


    LIB can build IEC60529 IP laboratories for you, providing one-stop solution and water spray test equipment


    IPX1 IPX2 IPX3 IPX4 Test ChamberIPX5 IPX6 Water Test Chamber
    IPX7 IPX8 Water TankIPX9K Water Test Chamber
