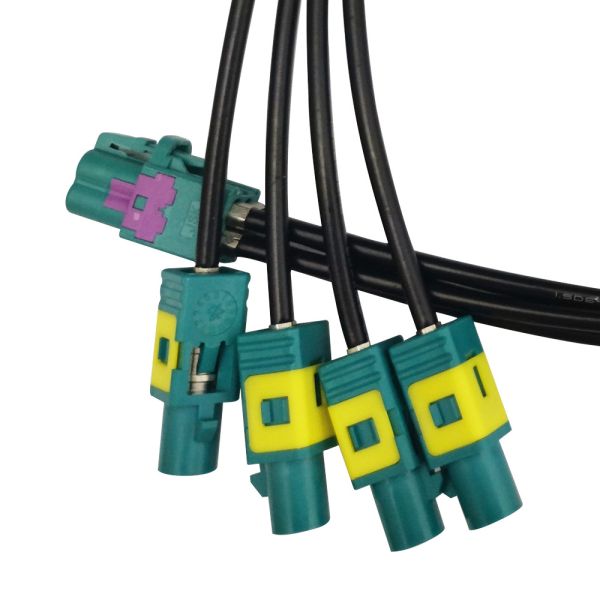

High-Speed Quad Mini FAKRA Coaxial 4-In-1 Cable Z-Code Plug For Car
Product description:
Mini FAKRA connectors support up to 20 Gbps of data transfer and
require 80% less mounting space than standard FAKRA products. The
color-coded housing provides visual guidance during assembly, while
the mechanical keying option prevents connector misalignment.
Supports frequencies up to 9 GHz and an operating temperature range
of -40°C to +105°C. Typical applications include 360° surround view
cameras, self-driving cars, GPS navigation, 3D instrument clusters,
and more.
Main Feature:
1. 80% installation space savings compared to traditional FAKRA
2. 20Gbps data rate is ideal for high bandwidth applications
3. No misuse due to secure coding system
4. Primary and secondary locking system leads to high assembly
security
5. Rugged, impact-resistant construction
6. Real-time data transmission
7. MOQ:20 PCS
Applications:
1.360° surround view camera
2.Self-driving vehicles
3.Advanced Driver Assistance System (ADAS)
4.GPS telematics or navigation
5.High bandwidth infotainment system
6. Remote start and vehicle control
7. Vehicle assisted heating
Offer Custom:
We accept OEM and ODM orders. Customized cable types, connector
types and cable lengths are available. We will be happy to consider
your requirements in order to provide an effective solution. Please
feel free to contact us. Excellent customer service and technical
support are always available to support our customers.
Technical Specifications:
| Quad Mini FAKRA |
Electrical Data | lmpedance | 50 Ω |
| Frequency range | DC up to 20 GHz |
| Center contact resistance | ≤15mΩ |
| Outer contact resistance | ≤5mΩ |
| Test voltage | ≤800 V DC |
| Working voltage | 60V DC |
| Contact current | ≤1 A DC |
Mechanical Data | Mating cycles | ≥25 |
| Engagernent force | ≤15N |
| Disengagernent force | ≥2N |
| Retention force latch | ≥ 110N |
| Retention force primary lock | ≥ 80 N |
| Retention force secondary lock | ≥80 N |
Environmental Data | Temperature range | -40°C-+105°C |
Mini FAKRA Coding:
FAQ:
1.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can
offer the latest price for you.
2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.
3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have
any other problems, please contact us to communicate as soon as
possible, and we will give you a quick and reasonable solution.
Thanks a lot!
