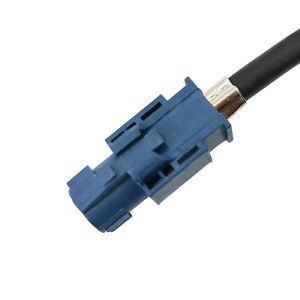

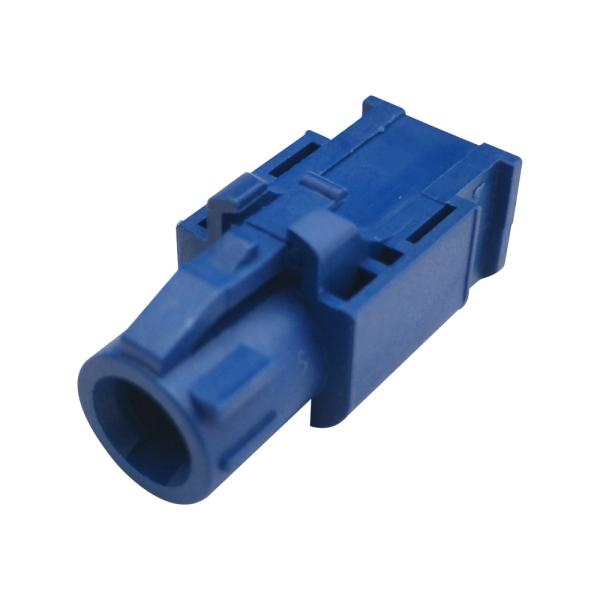

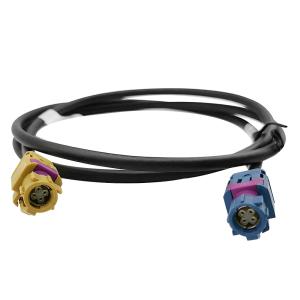

Straight C Coding Blue Female Jack FAKRA HSD Connector With Housing
Product description:
High Speed Data (HSD) ConnectorsThe system is focused on various
motor vehicle applications and can transmit data and signals at
frequencies up to 6 GHz without crosstalk interference, making it
ideal for applications in the automotive industry.HSD ConnectorsThe
HSD connector system can transmit USB signals, signals from LVDS
cameras, or signals from IEEE 1394.
Main Feature:
1. Data rate up to 6Gbps
2. Coaxial cable with high shielding
3. Capable of high-speed data transmission, such as USB, LVDS and
Ethernet
4. Prevents misuse due to a secure coding system
5. High assembly security due to primary and secondary locking
system
6. Multiple housings for space saving and fast insertion operation
7. MOQ:20 PCS
Applications:
1. Rear entertainment system
2.Digital instrument panel
3.Dashboard/Touch Screen
4.Bluetooth
5.USB connection
6. Dual-band WIFI
7.Surround camera
Offer Custom:
We accept OEM and ODM orders. If you need a different installation,
please let us know the type of connector required, and the length
of the cable, and we will be happy to consider your request for a
working solution. Feel free to contact us.
Technical Specifications:
| HSD Connector |
Electrical Data | lmpedance | 100 Ω |
| Frequency range depending on cable type | DC to 6 GHz |
| Return loss | ≥ 20 dB,DC to 1 GHz
≥ 17 dB,1 GHz to 2 GHz |
| lnsertion loss | ≤0.1 dB, DC to 2 GHz |
| lnsulation resistance | ≥ 1 x 10³MΩ |
| Signal contact resistance | ≤ 10 mΩ |
| Outer contact resistance | ≤7.5 mΩ |
| Test voltage | 250 V rms |
| Working voltage | 60 V rms |
| Coupling attenuation | ≥75 dB,DC to 1 GHz
≥ 65 dB,1 GHz to 2 GHz |
Mechanical Data | Mating cycles (standard, non waterproof) | ≥25 |
| Mating cycles (waterproof) | ≥5 |
| Engagement force | ≤30 N |
| Engagement force waterproof | ≤40 N |
| Disengagament force | ≥5N |
| Retention force latch | ≥ 110 N |
| Retention force primary lock | ≥80 N |
| Retention force secondary lock | ≥60 N |
| Polarization feature effectiveness | ≥80 N |
HSD Coding:
FAQ:
1. Q: Can you help with design?
A: We accept OEM and ODM orders.
2. Q: Can I get samples for free?
A: Yes, samples are available, but you need to pay the shipping
cost.
3. Q: What if customers find any quality problems?
A: We will respond positively and give reasonable solutions to
quality problems as soon as possible, because we intend to
establish a long-term strategy with our customers, whose value is
to provide better service.
