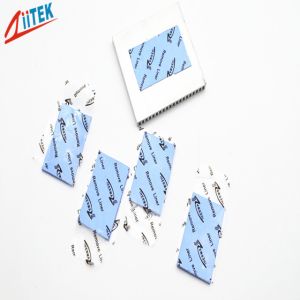

12±5 Shore00 Thermal Conductive Pad Silicone Rubber For Memory Modules

Name: 125 Shore00 Thermal Conductive Pad Silicone Rubber For Memory Modules
Brand: ZIITEK
Price: 1 USD

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF1100-05ES
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	100000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

12±5 Shore00 Thermal Conductive Pad Silicone Rubber For Memory Modules

12±5 Shore00 China company supplied thermally conductive silicone rubber For Memory Modules

The TIF1100-05ES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF100-05ES-Datasheet.pdf

Features

> Good thermal conductive: 1.5 W/mK

>Thickness:2.5mmT

>hardness:12±5 shore00

>Moldability for complex parts

>Outstanding thermal performance

Applications

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

>LED TV and LED-lit lamps

>RDRAM memory modules

>Micro heat pipe thermal solutions

>Automotive engine control units

Typical Properties of TIF1100-05ES Series
Color	Gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Density	2.0 g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	12±5 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.30%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.

FAQ

Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
