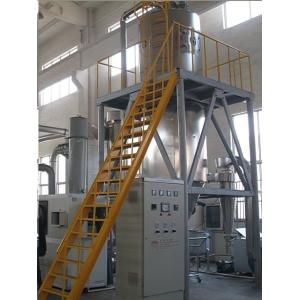

    Customized Pressure Spray Dryer Machine Saving Energy For Egg White Food / Plant

    Ask Lasest Price
    Brand Name : Melton
    Model Number : YPG,Customized
    Certification : ISO9001/CE
    Price : $10,000.00(>=1 Sets)
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Customized Pressure Spray Dryer Machine Saving Energy For Egg White Food / Plant

    Independent Innovation Ypg Series Pressure Spray Dryer (Parallel Flow) For Egg White Food And Plant


    Product Overview
    The liquid or paste raw material is sprayed into small liquid drop by pressed sprayer draw assistance from pressure of the diaphragm pump, and quickly drying through amply heat exchange (10-90sec.). Most of the powder granules are collected from outlet of discharge at the bottom of the dryer. The wasted air and fine powder are separated by the cyclone, the wasted air is exhaust from the draft fan, and fine powder is collected at the bottom of the cyclone. There is a second-grade duster equipped at the outlet; therefore, the recovery rate of the finished powder granule can be 96% to 98%.
    Feature At Glance

    1. The dry speed is fast and suitable for drying thermal sensitivity material particularly.


    2. The finished product is ball granule with uniform size with good fluidity and solubility.The purity of product is high and its quality is good.


    3. It applied scope is wide.According to the characteristics of raw material,it can use hot air to dry and also can use cool air to granulate.It has strong adaptability to raw materials.


    4. It can be equipped with fine powder return and Rewetting agglomeration system to meet the customer's demand for material particle size.


    5. Easy operation and convenient control to realize automatic operation.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range.


    Details

    Main Technical Design


    1. Atomizing way: Centrifugal atomizing or pressure atomizing
    2. Air - filtering system

    3. Pre & Middle air filter and HEPA

    4. Input system: Adjustable Screw or mono Pump
    5. Heating way: Electric, natural gas or other heating way
    6. Dust exhaust system: Cyclone separater×2 + water film duster or pulse bag filter
    7. Collect product system:Discharge interminately by Cyclone separater and Main tower chamber
    8. Control system:The atomizer is adjusted stably by frequency conversion control; inlet and outlet temperature inside can be set up precisely. PLC control . Touch screen
    Product Specifications
    Product Application


    Successful Project
    Project in China Project in Turkey Project in Russia

    Installation



    Our Shipping


    Our Service
    Pre-sale service
    1. Introduce the product to the customer in detail, answer the question raised by customer carefully; 2. Make plans for choice according to the needs and special requirements of users in different sectors.
    Selling service
    1. Ensure product with high quality and pre-commissioning before delivery; 2. Delivery on time; 3. Provide full set of documents as customer's requirements.
    After-sale service
    Provide considerate services to minimize clients' worries. 1. Assist clients to prepare for the first construction scheme; 2. Install and debug the equipment; 3. Train the first-line operators; 4. Examine the equipment; 5. Take initiative to eliminate the troubles rapidly; 6. Provide technical support; 7. Establish long-term and friendly relationship.
    FAQ
    1.Can I use this machine to extract some raw materials?
    Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
    2.Can I use my own raw materials for extraction test?
    Yes, of course. We can do extraction tests and send videos and test reports for your reference.
    3.Do you have OEM service? Do you provide parts?
    Yes, we will, as long as you provide us with your drawings and detailed requirements.
    4.How can we visit your factory?You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
    5.How to transport equipment?
    We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
    6.What is the voltage of the equipment?
    The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
    7.what is your after-sales service?
    We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
