545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel

    Buy cheap 545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel from wholesalers

    Buy cheap 545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel from wholesalers
    • Buy cheap 545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel from wholesalers

    545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel

    Ask Lasest Price
    Brand Name : MITSCN
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

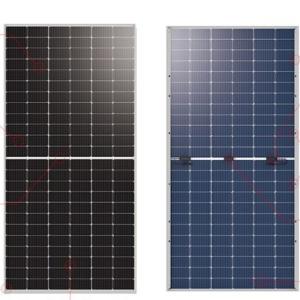

    545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel

    545w 550w Panel Solar Half Cut Mono Solar Panels HJT PV Module 182mm 12BB

    Cell size:182mmx91mm
    Type:PERC, Half Cell, 550w panel solar
    Panel Dimensions:2284*1133*35mm
    Panel Efficiency:21.10%
    Certificate:TUV/IEC61215/IEC61730/CEC/CE/CHUBB/ISO
    Warranty:10 years material/25 Years Output Power Guarantee
    Tolerance:0--+5w
    Front Glass:3.2mm Tempered Glass
    Solar cell:mono 182*91mm
    Output cables:4mm2 Symmetrical Lengths 300mm
    Junction Box:IP68 Rated
    OEM:Acceptable
    Weight:27KGS


    545w 550w Panel Solar Half Cut Mono Solar Panels HJT PV Module 182mm 12BB

    SPECIFICATIONS FOR SF-M18/144(540-560W)
    TYPICAL TYPE
    SF-M18/144540
    SF-M18/144545
    SF-M18/144550
    SF-M18/144555
    SF-M18/144560
    Max power(Pmax)
    540
    545
    550
    555
    560
    Max power voltage(Vmp)
    41.65
    41.70
    41.75
    41.80
    41.85
    Max power current(Imp)
    12.97
    13.07
    13.17
    13.28
    13.38
    Open circuit voltage(Voc)
    49.50
    49.65
    49.80
    49.95
    50.10
    Short circuit current(Isc)
    13.85
    13.92
    13.99
    14.06
    14.13
    Moudle efficienvy(%)
    20.90
    21.10
    21.30
    21.50
    21.70
    Power tolerance
    0~+5W
    Max system voltage
    DC1500V
    Maximum Series Fuse Rating
    25A
    Dimensions
    2279*1134*35mm
    Weight
    31.0kgs
    Front glass
    High transparency solar glass 3.2mm (0.13 inches)
    Frame
    Silver, anodized aluminium alloy
    Output cables
    TUV1×4.0mm2,Length:300mmorCustomizedLength
    Junction box
    IP68
    Cell type
    Monocrystalline silicon 182x91mm
    Number of cells
    144 cells in series
    Warranty
    10years of product defects in materials & workmanship
    10years for 90% of warranted minimum power output
    25years for 80% of warranted minimum power output

    FAQ


    Q1: Is your company a factory or a trading company?
    A: We are a factory with more than 10 years of manufacturing experience;
    strong after-sales service team and technical support.
    Q2: What is the MOQ?
    A: We have stock and semi-finished products. And there
    are enough substrates to make new samples and orders of all models, so small batch orders can be accepted, which can well meet
    your requirements.
    Q3: Why are other people's prices so cheap?
    A: We try our best to ensure our quality is the best in the same
    price range. We believe safety and efficacy are paramount.
    Q4: Can I have sample test?
    A:Yes, you are welcome to test samples
    before ordering: sample orders are generally dispatched within 2-3 days.
    Q5: Can I add my logo to the product?
    A: Yes, we can use
    OEM and ODM. But you should send us a trademark authorization. Q6: Do you have inspection procedures?
    A: 100% quality inspection
    before packing

    Quality 545W HJT Solar Module 182mm Solar Cell 550 Watt Solar Panel for sale
