In order to provide service in tough application surroundings,
SWS supplies optimal performance and premium connections, which are
widely used by our customers in South-East, South America and
Africa.
Our premium connections can greatly improve the usage span life and
save costs for the end user.
TP-CQ｜2-3/8"~13-5/8"
Structure Features
--High performance gas-tight premium connection for casting and
tubing, ISO 13679 CALIV approved.
--Excellent gas seal-ability under combined load
--Easy stabbing, No cross threading
--Superior Anti-galling performance
--Easy repairing
--Suitable for low alloy & carbon steel pipe

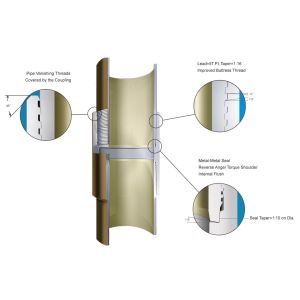

Modified Buttress Thread
--Taper=1:16
--TBG: 2-3/8in~2-7/8in: 8T.P.I. 3-1/2in~4-1/2in: 6T.P.I.
--CSG: Sin~13-5/8:5T.P.I.
--Meta-Metal Seal
--Seal Taper: TBG: 1:1.732 CSG: 1.10,1.6,1.3
--Reverse angle torque shoulder
Performances
Threaded Connection
--mproved Buttress thread with a taper of 1:16.
The clearance at the top of the thread crests minimize thread
galling and avoid the tapping of compound inside the threads.
Metal-to-Metal Seal
--Metal-to-metal seal surface can provide enough contact length and
pressure.
The seal system offers excellent gas-tight sealing, even under the
most combined loads.
Reverse Angle Torque Shoulder
--The reverse angle torque shoulder provides a positive torque stop,
which allows accurate power tight make-up and minimizes hoop
stresses in the connection strength.
Streamlined Internal Profile
--A pin ID chamfer, tight tolerances on the coupling center combined
with a long shoulder will minimize turbulence and energy loss.
Coupling Design
--Joint efficiency is more than 100% and coupling critical section is
greater than pipe body section.
Connection Low Stress Design
--Connection low stress design ensures more safe under corrosive
environment.
