    UR-CLAMP Secure Cable Guidance Welding Collaborative Robot Accessories

    Ask Lasest Price
    Brand Name : IGUS GMBH
    Supply Ability : 100 Set/Sets per Month
    Price : Negotiable
    • Product Details
    • Company Profile

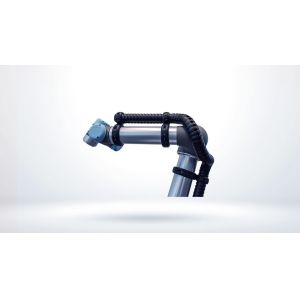

    UR-CLAMP Secure Cable Guidance Welding Collaborative Robot Accessories

    UNIVERSAL ROBOT ACCESSORIES IGUS UR-CLAMP SECURE CABLE GUIDANCE

    Introduction

    • The igus® triflex® R system guides cables and hoses secure along the UR Robot
    • Guidance via synthetic clamps and energy chains around the arms of the UR Robot

    Features and Benefits

    • Easy and fast installation
    • Modular system – easy to shorten and lengthen
    • Cable guidance with minimum bending radius and minimum torsion angle
    • Easy and fast filling with harnessed cables (connectors) from outside (TRE, TRL)
    • Two or three chambers for separating cables and hoses
    • Dimensions:

      UR3/UR3e

      • TR.916.810.054
        • 30mm width,
        • 130,5mm height,
        • Ø 54mm
      • TR.916.810.066
        • 30mm width,
        • 142,5mm height,
        • Ø 66mm

      UR5

      • TR.916.810.075
        • 30mm width,
        • 152mm height,
        • Ø 75mm
      • TR.916.810.086
        • 30mm width,
        • 162,5mm height,
        • Ø 86mm

      UR10

      • TR.916.810.086
        • 30mm width,
        • 162,5mm height,
        • Ø 86mm
      • TR.916.810.108
        • 30mm width,
        • 185mm height,
        • Ø 108mm

    How does it work

    • New guidance of the triflex® R System with the use of protectors and synthetic clamps for all UR Robots.
    • Easy mounting of the NEW synthetic clamps with integrated screws for an elegant guiding energy system without any interfering contours

    Applications

    • Gluing, Dispensing, and Welding
