| Brand: | Mitsubishi | Model : | MR-JE-10B |
| Power : | 100w | Input : | 3AC/AC200-240V |
| Input current : | 0.9A/1.5A | Input frequency : | 50/60Hz |
| Output : | 3PH170V | Output frequency : | 0-360HZ |
| Output current : | 1.1A | Temp : | 55℃ |
| IP | 20 | Place of original : | Japan |

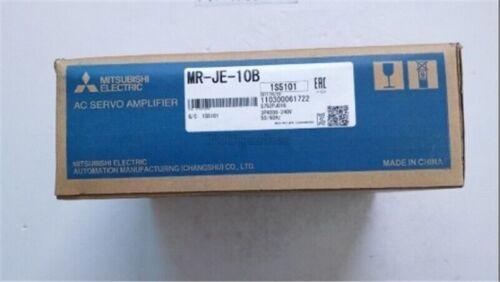

MR-JE-10B Mitsubishi 3AC Input 100w Power Output Servo Control
Driver
MR-JE-10B is used in conjunction with Mitsubishi servo motor
HG-KN13.
Detailed introduction to product specifications of Mitsubishi servo
amplifier (Mitsubishi servo driver):
[Output]
Rated voltage: three-phase AC170V
Rated current: 1.1A
[Power input]
Voltage and frequency: three-phase or single-phase AC200V-240V,
50Hz/60Hz
Rated current (Note 1): 0.9A
Allowable frequency variation: within ± 5%
Power equipment capacity: 0.3kVA
Surge current: 32A (reduced to approximately 3A in 20ms)
[Power supply for interface]
Voltage: DC24V ± 10%
Current capacity: 0.1A
[Control method] Sine wave PWM control, current control method
[Dynamic brake] built-in
[SSCNET III/H communication cycle (Note 3)] 0.444ms, 0.888ms
[Communication function] USB: connection to personal computers,
etc. (corresponding to MR Configurator2)
[Protection function] Overcurrent cutoff, regenerative overvoltage
cutoff, overload cutoff (electronic thermal relay), servo motor
overheat protection, encoder anomaly protection, regenerative
anomaly protection, undervoltage protection, instantaneous power
outage protection, overspeed protection, and error excessive
protection
[Overseas standard specifications]
CE mark: LVD: EN 61800-5-1; EMC:EN 61800-3； MD:EN ISO 13849-1,EN
61800-5-2,EN 62061
UL specification: UL 508C
[Construction (protection level)] Self cooling · open (IP20)
[Tight installation (Note 4)]
Three-phase power input: Yes
Single phase power input: Yes
[Weight] 0.8kg
