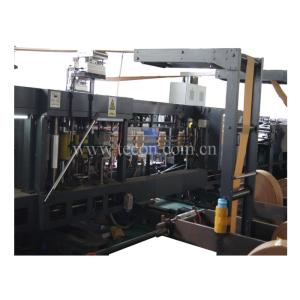

    Multifunction Paper Bag Making Equipment Starch Glue 130 Pcs / Min

    Ask Lasest Price
    Brand Name : Tecon
    Model Number : ZT9802SD
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 16pcs per year
    Delivery Time : 3 months after received your payment
    • Product Details
    • Company Profile

    Multifunction Paper Bag Making Equipment Starch Glue 130 Pcs / Min


    Multifunction Full Automatic Cement Paper Bag Making Machine for sales


    • Features

    1) Alternating frequency conversion for adjusting speed.

    2) Centralized vacuum compressed air and glue supply station.

    3) Pieces process control system ensures a successive production with high efficiency. 4) An accurate synchronized device ensures a stable and realizable tube end opening and valve

    patches pasting.

    5). Open layout of machine is convenient for changing components for different sack size.


    • Specifications

    • 1). High Speed kraft paper cement bag making machine
      2). Main parts from Germany/Japan
      3). Automatic & High speed
      4). Multi-functions


    • Technical parameters of our production line

    ZT9802SD Tuber Machine
    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    ZT9802SD


    Performance


    Speed

    120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    400~1400 mm

    Tube width

    320~620 mm

    Tube Cut Length

    420~1400mm

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Diameter of print roller

    ø196~ø312 mm

    Printing width

    1300 mm(MAX)

    Paper reel width

    660~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Air consumption

    1,100L/min

    Main drive motor

    27kw

    Size of whole set

    35.3m×2.4m×2.7m( L×W×H)

    Total weight

    34 T


    Composing of the machine
    ZT9802SD Tuber Machine

    Name

    Quantity

    2-color printing machine

    1

    Mill roll stands

    5

    Paper web guide

    1

    Automatic paper unwinding

    1

    Auxiliary web guide

    1

    Perforation unit

    1

    Cross stepped gluing unit

    1

    Longitude seam gluing unit

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electrical system

    1 (Schneider, France)

    Bearing

    (NSK, Japan)

    Compressor

    1

    Servo motors

    4


    • After Sales Service

    We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.


    • Sample Bag

    Automatic valve paper bag machine for cement,chemicals and food.



    If you are interested in our products, please do not hesitate to contact us!!
