Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

    Buy cheap Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw from wholesalers

    Buy cheap Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw from wholesalers
    • Buy cheap Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw from wholesalers
    • Buy cheap Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw from wholesalers
    • Buy cheap Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw from wholesalers

    Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

    Ask Lasest Price
    Brand Name : Tecon
    Model Number : HD8913F (HD4913)
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 16Pcs Per Year
    Delivery Time : 3-5 months after received your payment
    • Product Details
    • Company Profile

    Sheet-Feeding Production Fully Automatic Paper Bag Making Machine 30kw

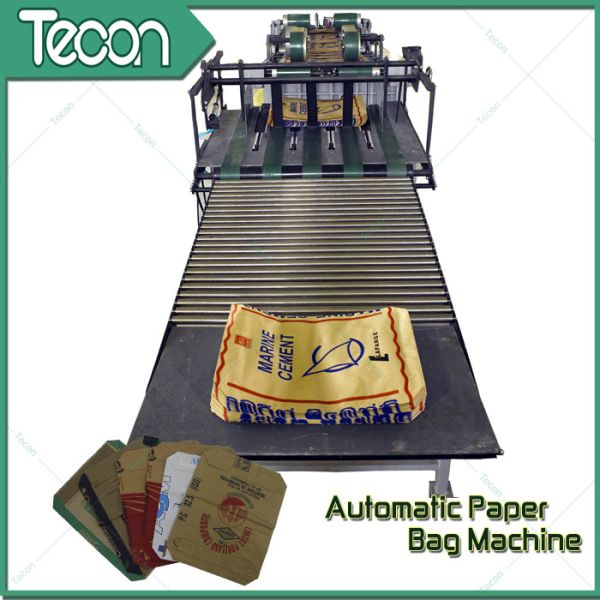

    Fully Automatic Sheet-Feeding Cement Paper Bag Machine Production

    HD series bottom pasting machine does pasting work to the paper tube. Bottom of paper tube can be folded automatically and pasted with glue, another end of tube also will be glued and valve patches can be pasted at this end. This machine can paste the external or internal reforcing sheet.


    HD8913-F (HD4913) Bottomer Machine (bottomer with strength sheet pasting unit) Operating condition


    Working hour22 hours/day
    Design temperature0~40℃
    Design humidityMAX. 95%
    Number required1 unit
    Model nameHD8913-F (HD4913)

    Performance


    Max Speed110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
    Bag length510-~780mm
    Bag width430~550mm
    Bottom width90~130mm
    Bottom open width200~440mm
    Distance between bottom centers420~650mm
    Valve sheet length100~300mm(adjustable)
    Valve sheet width120~240mm(adjustable)
    Main drive motor30kw
    Total weight22.7T
    Size of whole set23.0m×2.2m×2.05m ( L×W×H)
    Valve sheet reel diameterMax.1,300mm
    Number Patch Length(2~4)layers+1PP film
    Composing of the production line HD8913-F (HD4913) Bottomer Machine

    NameQuantity
    High speed feeder machine1
    Perforation machine1
    Tube opening unit1
    Automatic gluing machine1
    Scrip sealing machine1
    Bag bottom turning unit1
    Counting and delivery line1
    Automatic delivering out unit1
    Piling up platform1
    Electric control unit1
    Vacuum-pump1

    Usage and Characteristics


    It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.


    The Detail of Bottomer Machine




    Sample bags for cement, chemicals or foods.




    Production line staff assignments: 10 persons/line/shift


    Tuber machine total4 persons
    Load paper and ink1 persons
    Turning on power1 persons
    Tubes collecting2 persons

    Bottomer machine total6 persons
    Feeding1 persons
    Gluing and Valve sheet part2 persons
    bags collecting2 persons
    patrol1 persons

    Welcome to contact us or visit our factory. We are ready here.
