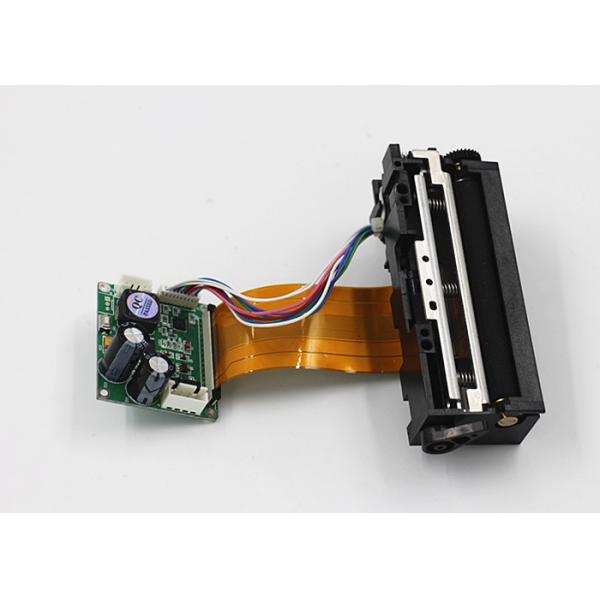

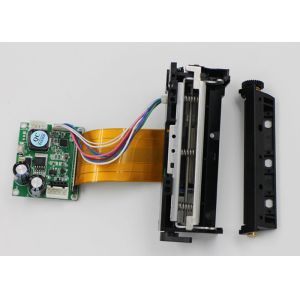

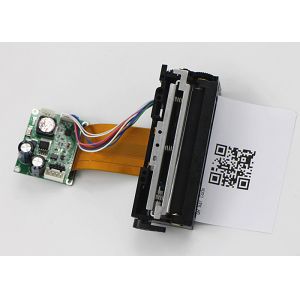

    3 inch Kiosk Thermal Printer Module Medical Instrument Printer

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-V345
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,000 units/monthly
    • Product Details
    • Company Profile

    3 inch Kiosk Thermal Printer Module Medical Instrument Printer

    3 inch Thermal Kiosk Printer Module medical instrument printer


    Quick details:


    Seiko printer head LTPV345

    Ultra printing width 80mm

    High speed max85mm/s

    RS-232 and TTL interfaces by option

    Label and thick thermal paper supporting

    Platen-free design for easy paper loading

    Vertical( 90°) paper feeding

    Low noise


    Description:


    MS-V345 it combines with brand name printer head LTPV345 for 80 mm thermal printer pro solutions.

    it is widely used for medical device printer.


    specification:


    Mechanism

    LTPV345

    Printing Method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dots/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Paper thickness

    60~135 um

    Printing speed

    max 85 mm/s

    Paper feeding direction

    90°

    sensor

    Thermal head temperature: thermistor

    Head up: photoelectric sensor

    Paper out :photo interrupter

    Operation voltage(V)

    Vdd:4.5 to 5.5

    Vp:4.2 to 8.5

    Current (A)

    Printer head: 3.33

    Motor: 1.0

    Reliability

    Circuit: over 110 million pulses

    Mechanism: over 50 km

    Working temperature

    0 – 50 ℃

    Dimension (L x W x H)

    93.0 X 34.5 X 39.5 mm

    Weight

    About 95 g

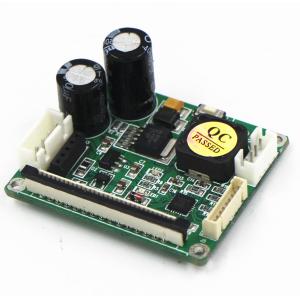

    Controlling board


    Interfaces

    RS-232/TTL

    Power supply

    DC 8V~18V

    Flash memory

    128k

    SRAM

    20k

    Dimension(L*W*H)

    46*39*23 mm

    weight

    1.8 g




    Application:


    Measure/medical device; industrial equipment; weight scale; fire controller; analyzer printer , voting machine and more


    Competitive Advantage:


    1. Prompt delivery
    2. Small order accepted
    3. Low cost
    4. Brand-name printer parts
    5. Product performance
    6. Customization offer

    Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
