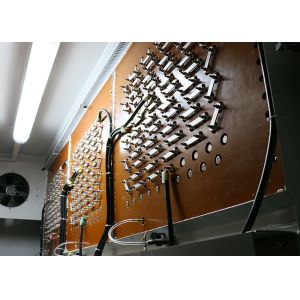

    Step Control Medium Voltage Load Bank With Stainless Steel Sheathed Elements

    Ask Lasest Price
    Brand Name : Fullde
    Model Number : LB-2000KW-6.9KV
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Step Control Medium Voltage Load Bank With Stainless Steel Sheathed Elements

    2000KW 6.9KV Medium Voltage Load Bank Protect Your Generator


    Features:

    1.Excellent components
    2.Durable and reliable
    3.Easy to transport


    Specifications:


    1. Rated voltage:

    2. Stainless steel sheathed elements manufactured from high grade magnesium oxide.

    3. Cooling method: Forced air-cooled, mounted on the side of the load bank blow horizontally.

    4. Working mode: step control
    Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw. Any load combination is achievable.

    5. Load bank features world-famous components to ensure reliable performance and longer service life including:
    Siemens switches, knobs and indicators.
    ABB Circuit breakers etc...

    6. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.

    7. Control mode: Local manual control; Manual control via a remote control panel

    8. Ambient temperature: -20~+55 ℃


    Technical Parameters
    Rating voltage/frequency6.9KV/50Hz
    Max Load PowerApparent Power: 2000kW
    Load Resolutionstep:100KW
    Power Factor1
    Load Tolerance±5%
    Fan Control Power190V/380V,50Hz/60Hz
    Wire ConnectionLoad bank input——Copper bar
    Control power input——Connector-bar
    Max Protection GradeIP56
    Way of WorkingContinuous Working
    CoolingForced air cooling, horizontal inlet air and upwards exhaust cooling
    TransportationHoisting
    ColorRAL7032
    Dimensions6000*2438*2591
    Weight4000KG
    AccessoriesSwitch: ABB, Siemens and Schneider, PLC: Panasonic and Siemens;
    Operating Environment Parameter
    Ambient Temperature-10℃~+50℃
    Relative Humidity≤95%
