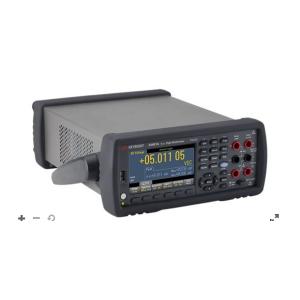

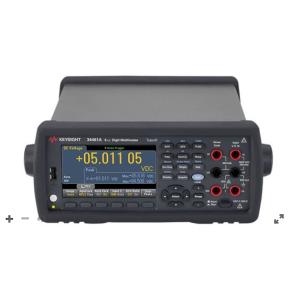

Keysight Agilent 34461A Digital Multimeter 6.5 Digit Truevolt DMM
Description of Keysight Agilent 34461A
The 34461A 6.5 digit multimeter is the next-generation replacement
for the Keysight 34401A digital multimeter (previously Agilent
34401A). 34461A turns lots of data into results quickly with
Truevolt Series DMMs' new graphical display, advanced analysis
modes, and built-in math functions. It offers Truevolt technology
that provides measurement and display capabilities as you've never
experienced before. Keysight's exclusive Truevolt technology is
based on patented analog to digital converter technology and
eliminates extraneous factors like noise, injected current, and
input bias current from measurements to give you the highest
measurement accuracy. This new technology allows you to focus more
on the quality of your designs rather than worrying about the
quality of your measurements.
Overview and Features of 34461A Digital Multimeter
- Histogram, bar and trend charts on 4.3-inch color graphical display
ease monitoring and speed up statistical analysis.
- Measure with confidence, with 35 ppm basic DCV accuracy.
- Test low power devices with low DC current measurement range from
100 µA to 10 A.
- Flexibly automate measurements over USB or LAN/LXI core interface.
- Migrate with confidence from legacy model 34401A.
- A BenchVue software license BV0001B is now included with your
instrument.
What is included:
- Standard 3-year Warranty (90 days for unserialized accessories)
- 34138A Test Lead Set
- USB Cable
- Power Cord
- Certificate of Calibration
Worry about the quality of your design, not the quality of your
measurement
- Patented analog-to-digital converter enables metrology grade
architecture
- Measure your real-world signals, not instrument error: minimized
measurement error, digital AC measurements and expanded measurement
functionality
- All specifications tested, compliant and guaranteed according to
ISO/IEC 17025
Everything you depend on with the 34401A and more
- Industry's only 100% drop-in, SCPI compatible replacement for the
34401A DMM
- Designed by the same team of engineers as the 34401A
Display DMM results in ways you never have before
- Color, graphical display with built-in bar chart, histogram, trend,
math, and statistics
- I/O: USB, LAN/LXI, GPIB (optional)
- BenchVue Enabled. Control your DMM from your PC to view and capture
your data easily.
Measure with unquestioned Truevolt confidence
- 11 measurement functions: DC/AC voltage, DC/AC current, 2- and
4-wire resistance, Diode, Continuity, Frequency, Period,
Temperature
- Basic accuracy: 0.0035% DC, 0.06% AC
- 1000 V max voltage input, 10 A max current input
Move to the next generation 34401A DMM with 100% assurance
- Industry's only 100% drop-in, SCPI compatible replacement for the
Keysight 34401A DMM
- System capability: 1000 readings/second, 10,000 reading memory
List of Options
| 100 | 100-volt ac line selection |
| 120 | 120-volt ac line selection |
| 220 | 220-volt ac line selection |
| 240 | 240-volt ac line selection |
| GPIB | GPIB interface module for Truevolt series DMMs - factory installed |
| SEC | NISPOM and file security for Truevolt series DMMs - factory enabled |
| Z54 | ANSI/NCSL Z540.3-2006 Calibration |
