1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel

    Buy cheap 1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel from wholesalers

    Buy cheap 1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel from wholesalers
    • Buy cheap 1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel from wholesalers
    • Buy cheap 1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel from wholesalers

    1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FD1.6
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1-8 weeks
    Delivery Time : 1-8 weeks
    • Product Details
    • Company Profile

    1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel

    1. Specification of 1.6w ULP Ultra low power foldable portable solar panel

    ModelMonocrystalline silicon ultra low power Solar panel 1.6w/5v
    Working Model1*10pcs series connectioin
    Output Power1.6±0.1W
    Working Voltage(with cable Vm)Vm ≥ 5.0V
    Working Current(with cable Im)Im ≥ 300mA
    Open circuit Vol.Voc ≥ 6.0V
    Short circut Current(Isc)Isc ≥ 325mA
    Conver efficient≥19.8%
    Solar panel Size138.2*82.2*2.2 ±0.3mm
    Panel with housing Size141*85*12mm
    Gross Weigth0.15KG
    CableWhite, Diameter 26AWG, length:3m , MICRO or Type-C connection at the end, or other customized connector
    EVA0.4mm/0.45mm
    Frosted PET0.2mm
    Photovoltaic welding zone0.08*0.8mm
    Black adhesive zonewidth 4.0mm
    PCB Module

    1.0mm Fiberglass board


    2.Test environment(STC) of 1.6w ULP Ultra low power foldable portable solar panel

    1. The Sample is tested by standard PV module tester

    2. spectral energy: 1KW/㎡,

    3. Air pressure:AM=1.5

    4. Temperature: 25℃


    3. Advantages of 1.6w ULP Ultra low power foldable portable solar panel

    (1) IP64

    (2) Ultra low power

    (3) Two choices of the holder: 99.3*55.4mm(M2)/107*70mm(XXR-618)


    4. Power testing of 1.6w ULP Ultra low power foldable portable solar panel

    1. Turn the light same as customers requirement enviroment.

    2. Using electronic load meter to test ULP portable solar panel with cable. When Voltage=5.0V, output≥ 1.6w, then it’s qulified.

    3. The light intensity is corrected every 2 hours.

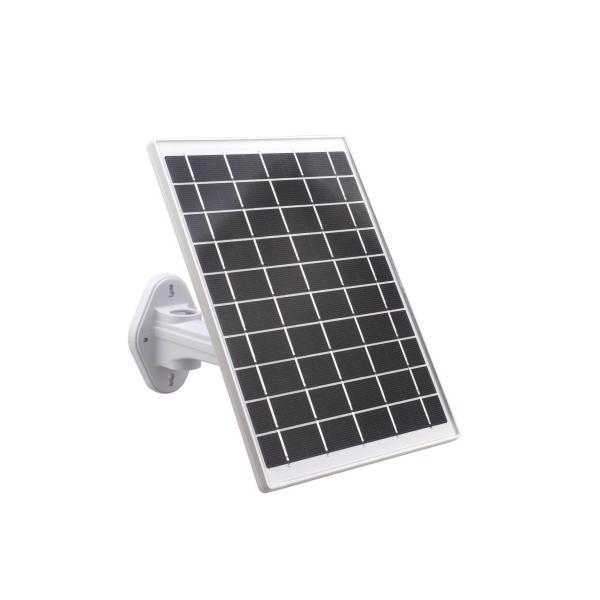

    Quality 1.6w ULP Ultra Low Power Outdoor Foldable Portable Solar Panel for sale
