Max1000W Power Metallographic Specimen Mounting Press 380 × 350 × 420mm Dimension

METMOU 400/METMOU 410 Metallographic Equipment Metallographic Sample Lab Mounting Press

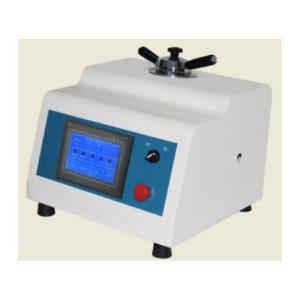

METMOU 400 AUTOMATIC MOUNTING PRESS

METMOU 400 AUTOMATIC MOUNTING PRESS is used to inlay small specimens, specimens in irrgular shapes, or specimens which are not easy to take up-the preceding process before grinding and polishing metallurgical or rock specimens. The inlaying operation serves to faciliate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallurgical microscope.
The machine is heated, an intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatical way. With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot solid materials ( such as urea-formaldehyde moulding powder and bakelite powder ) with the temperature automatically regulated and controlled.

Technical specifications

METMOU 410 AUTOMATIC MOUNTING PRESS is used to inlay small specimens, specimens in irregular shapes, or specimens which are not easy to take up, it is the preceding process before grinding and polishing metallurgical or rock specimens. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallurgical microscope. 　　

The machine is equipped with built-in water cooling system and it is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatic way. With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot solid materials (such as urea-formaldehyde moulding powder and bakelite powder) with the temperature automatically regulated and controlled.

Features

Water cooling system

Touch screen LCD operation

Automatic processing

Technical specifications

Mould diameter: Ø 22mm or Ø 30mm or Ø 45mm (choose one of them)
Heater: 650W

Transducer: 300W
Total power consumption: 1000W
Power supply: single phase, 220V, 50Hz
Dimensions: 420 x 390 x 460mm
Net weight: 55 Kg
