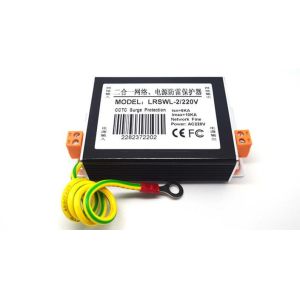

    Lightning Protection Device for Monitoring System Signal Combination

    Ask Lasest Price
    Brand Name : HD
    Certification : CE/FCC/RoHS
    Price : negotiations
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 pairs/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Lightning Protection Device for Monitoring System Signal Combination

    Lightning Protection Device for Monitoring System Signal Combination Functions:

    It applies to the overvoltage protection of the signal in the monitoring system with the integration of power, control signal and the video signal, to keep it from the damage caused by induced overvoltage, switching overvoltage and electrostatic discharge, etc.

    Features:

    It has such features as large current flow capacity, multilevel protection, quick response and small insertion loss.

    Technical Parameters:

    Specification2in1 12V Power2in1 24V Power2in1 220V Power2in13in1 12V Power3in1 24V Power3in1 220V Power
    Function protectionVideo, powerVideo, dataVideo, data, power
    Insertion loss0.3dB
    Response time<0.5ns
    Working temperature range-60℃~+95℃
    Max. Discharge Current10KA
    Overall Dimension102*64*28MM
    Continuous Working Voltage6V
    Limited Voltage8.8V
    Max. Transmission Rate10MHz
    Continuous Working Voltage12V24V220V12V24V220V
    Limited Voltage18V47V470V18V47V470V
    Continuous Working Voltage5V
    Limited Voltage8.8V
    Maximum Transmission Rate20MHz

    Installation and Maintenance:

    Input represents input end and output represents output end. Input end connects to input transmission line and output end connects to the protected equipment.

    The grounding conductor and the grounding bus of lightening protection system must be connected stably. Protection device should be put as close as possible to the protected equipment.

    The protection device doesn’t need special maintenance, but if it is damaged by high voltage or lightening, (when the LED indicator light is off, it just means that it has lost the function of lightening protection), please replace it timely.
