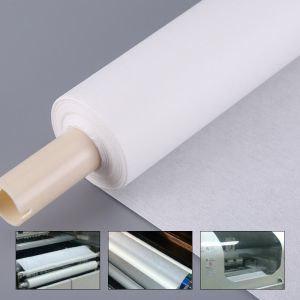

Cellulose DEK Non Woven Standard Poly SMT Stencil Wiping Rolls Eco
Friendly Stencil Wiper Roll
Model:
| Application Machine Type | SMT Silk Screen Roller Wipes Spec.(mm x m) | Paper tube/PVC tube Core(mm) |
| MPM | 300x10 | 19.5x455 |
| MPM | 443x10 | 19.5x455 |
| MPM | 600x10 | 19.5x615 |
| DEK | 300x10 | 19.5x530 |
| DEK | 350x10 | 19.5x530 |
| DEK | 490x7 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 510x9 | 19.5x530 |
| DEK | 520x10 | 19.5x530 |
| MINAMI | 270x5 | 8x290 |
| MINAMI | 350x6 | 8x370 |
| KME | 200x30 | 38x350 |
| KME | 270x30 | 38x270 |
| KME | 340x15 | 19.5x350 |
| KME | 480x30 | 38x480 |
| KME | 545x15 | 19.5x545 |
| PANASONIC | 270x10 | 38 X 280 |
| PANASONIC | 360x10 | 38x360 |
| PANASONIC | 350x20 | 38x355 |
| FUJI | 400x11 | 25x400 |
| FUJI | 500x11 | 25x500 |
| PANA | 360x12 | 38x360 |
| PANA | 410x36 | 38x410 |
| YAMAHA | 410x30 | 25.5x420 |
| YAMAHA | 350x10 | 25.5x350 |
| EKRA | 300x8 | 13.5x300 |
| EKRA | 450x8 | 13.5x450 |
| ASKA | 350x8 | 14x450 |
| ASKA | 430x8 | 14x450 |
| SAMSUNG | 400x7 | 20x460 |
More other sizes available upon request!
|
Eco-friendly Cross Non Woven Standard Poly-Cellulose DEK SMT
Stencil Wiping Rolls
Cross lapping wood pulp spunlace nonwoven is a very popular
material applied to industrial cleaning. It carries good absorption
of liquid, and excellent vertical and horizontal tension.
Product Specification:
| item: | value: |
| Material | 55% woodpulp + 45% polyester |
| Feature | Sustainable, Stocked |
| Product name | Stencil Non-woven Wipes |
| Thickness | 0.3mm |
| Absorption Capacity | 5.2 g/g |
| Absorption Rate | < 1 sec |
| Color | White |
Product Name:SMT stencil cleaning wiper roll
Suitable Printer brand
DEK,MPM,KME,PANA,SANYO,HITACHI,YAMAHA,TENRYU,FUJI,MINAMI,EKRA,JUKI
etc
Material 55%woodpulp+45%polyester (typical), viscose+polyester,
Core type :Paper core/PVC plastic core
Package :1roll/PE shrinkable film
the most impoartant parameter to quote
material composition,fabric width,fabric length, core type,core
length,inner diameter of core, if notches needed.
Usage
Removing solder paste to clean SMT printer
Feature:
1.High absorbent and exceptional low lint levels.
2.Remove the excess solder paste, adhesive and solvents that can
ruin any PCBs.
3.High strength
4.Roll can be customized to suit your exact requirement.
AVAILABLE FOR ALL SMT SCREEN PRINTERS
Myesde® is available for all major SMT screen printers. Custom
sizes can be manufactured with short lead times.
Myesde can also be used in other application.
If you also think it's a good idea to minimize solder defects,
contact us and we will help you to successfully upgrade your
stencil cleaning process.
Details:
We are one of the most reliable companies in this domain and are
into offering SMT Wiper Roll.
